• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380V, 3 Phase(Optional)
• Dimension(L*W*H)：3700*2140*1950mm
• Control System：Syntec Control System
• Spindle：China 6kw Hqd Air Cooling Spindle*3
• Spindle Power：6kw Hqd Air Cooling Spindle*3
• Spindle Speed：0-24000rpm,Min
• Motor and Driver：750W Leadshine Servo Motor & Driver
• Inverter：7.5kw Fuling Inverter
• Table Surface：T-Slot and Vacuum Working Table
• Option：Vacuum Pump; Dust Collector etc
• X,Y,Z Working Area：:1300*2500*200mm
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Table Surface

T-slot & vacuum working Table

X, Y Structure

China #25 linear guide rail, helical rack gear

Z Structure

Taiwan TBI Ball Screw and linear guide rail

Spindle Power

China 6kw HQD Air Cooling Spindle*3

Drive Motors

750W leadshine servo motor & driver

Inverter

China 7.5kw Inverter

Working Voltage

AC220V/50/60Hz, 3PH (Option: 380V)

Lubrication

Automatic lubrication system

Option

7.5kw water circulation vacuum pump;

3.0kw double pocket new type dust collector

Tool sensor

Auto tool sensor

Position cylinder

Auto position cylinder

Control box

Independent control box

Command Language

G Code

Operating System

SYNTEC control system

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software

Running Environment  Temperature

0 - 45 Centigrade

PS:All the working area and specifications can be customized according to your requests.

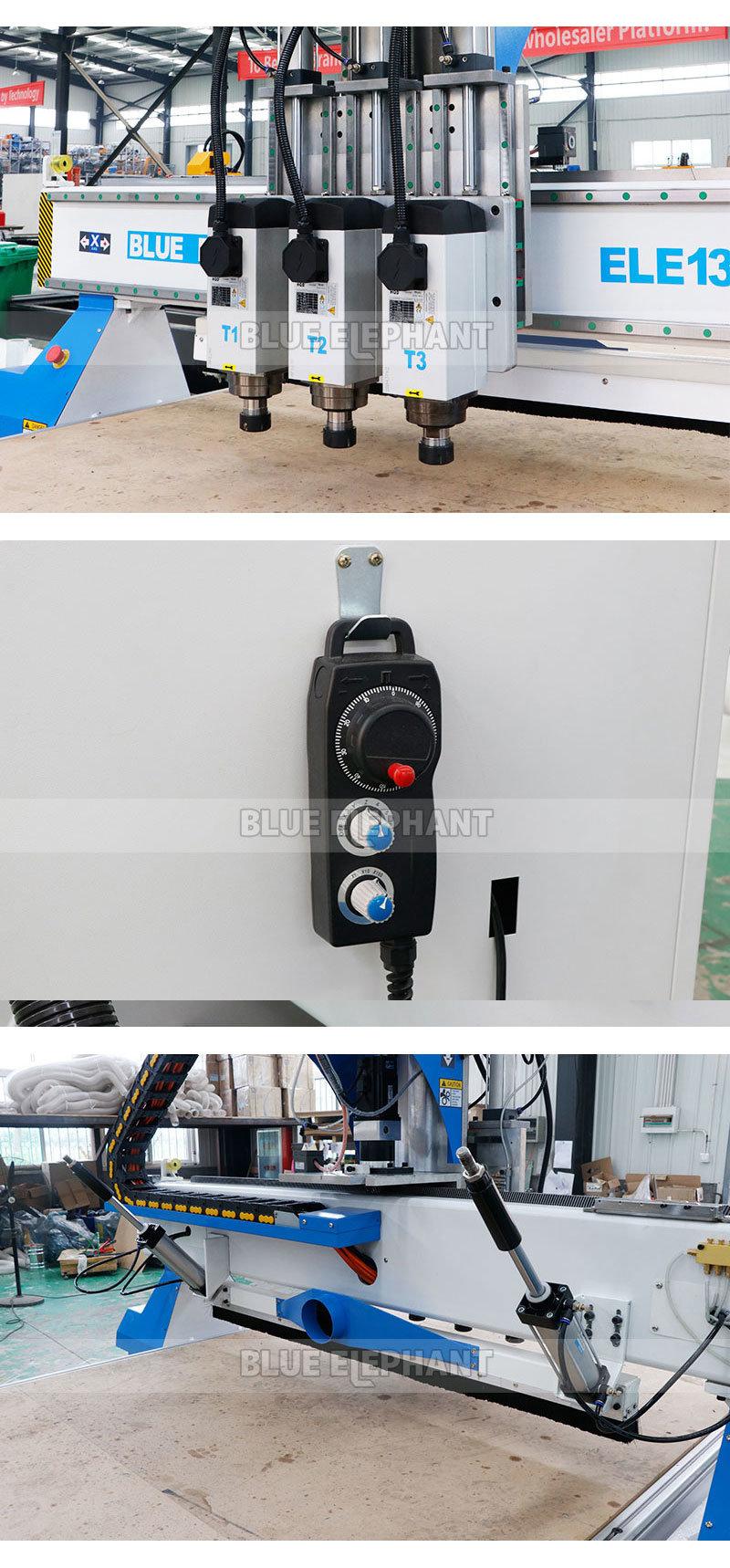

Detail image

Applications

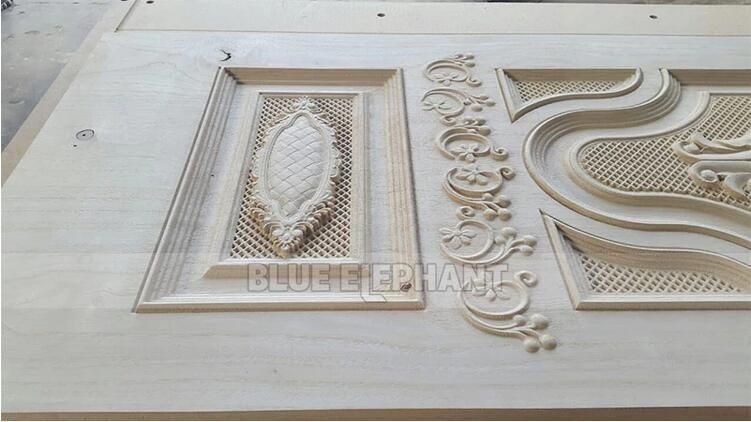

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

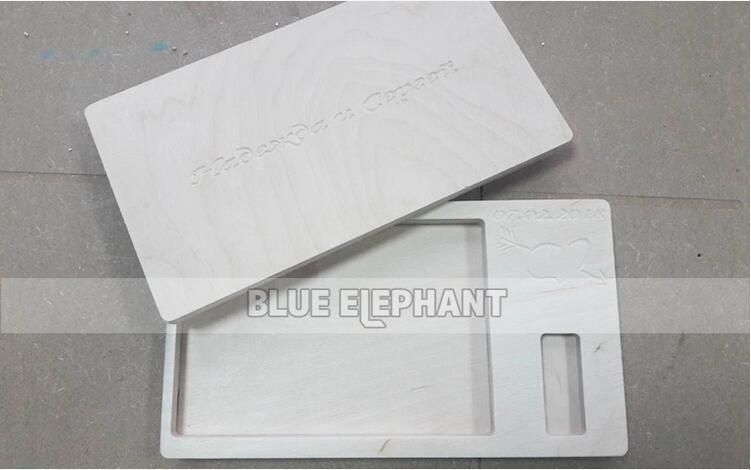

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.

Our Service

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Our factory

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• We have our R & D department, Quality control department, and after sale & service department.
• Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
• We had got CE and ISO9001 certification always offer best quality machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
