Chinese New Products Multi 8 Spindles Woodworking Machine Type with Rotary Device
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Double-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE, ISO, SGS BV TUV
Base Info
- Model NO.：1325-8s+8r
- Customized：Customized
- Condition：New
- Color：Customized
- Product Name：Woodworking CNC Router
- Brand Name：Blue Elephant
- Power(W)：According to Your Order
- Weight：1800kg
- Working Area：1300*2500*300mm
- Spindle：8 Pieces 2.2kw Air Cooling Spindle
- Motor：FL118 Motor
- Driver：Yako Driver
- Inverter：Fuling Inverter 2.2kw*8
- Software：Ucancam , Artcam,Type3
- Table：Removable T-Slot Table
- Transport Package：Standard Export Wooden Case
- Specification：3650*2450*1980mm
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets,Month
Description
Descriptions
Parameters
Product name
ELECNC-1325-8S+8R
Working area
1300*2500*300mm
Control system
DSP B18 control system

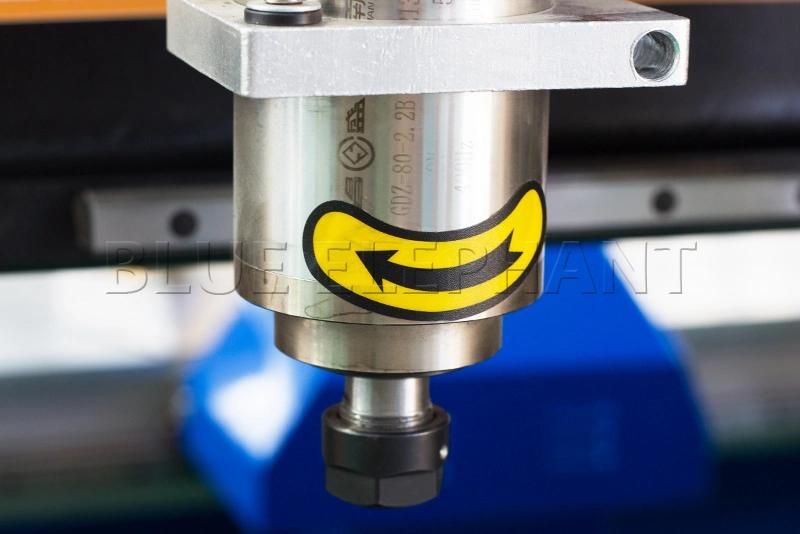

Spindle
2.2kw*8 water cooling spindle
Spindle speed
0-24000RPM
Inverter
2.2kw*8 fuling inverter
Motor and driver
8 piece*FL 118 stepper motor and YAKO 2811 bigger and stronger driver
Voltage
380V, 3ph, 50Hz
Linear rail
Sweden ABBA #20 linear guide for all axis
Table structure
New type thicker and bigger heavy duty welded frame and gantry
Table surface
Removable T-slot work table
X,Y axis transmission
Helical rack and pinion drive for X,Y axis
Z axis transmission
Taiwan TBI ball screw for z axis
lubrication system
Auto lubrication system
Rotary device
Rotary device with 200mm diameter
PS: All the working area and specifications can be customized according to your requests.

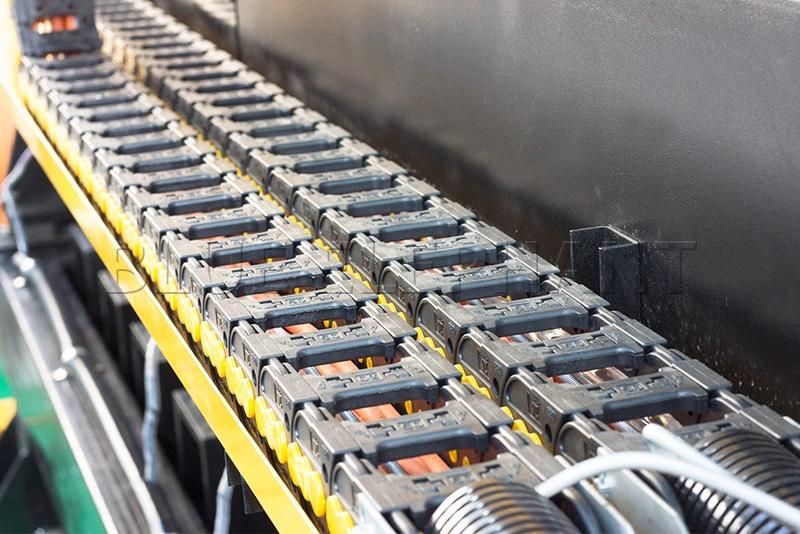

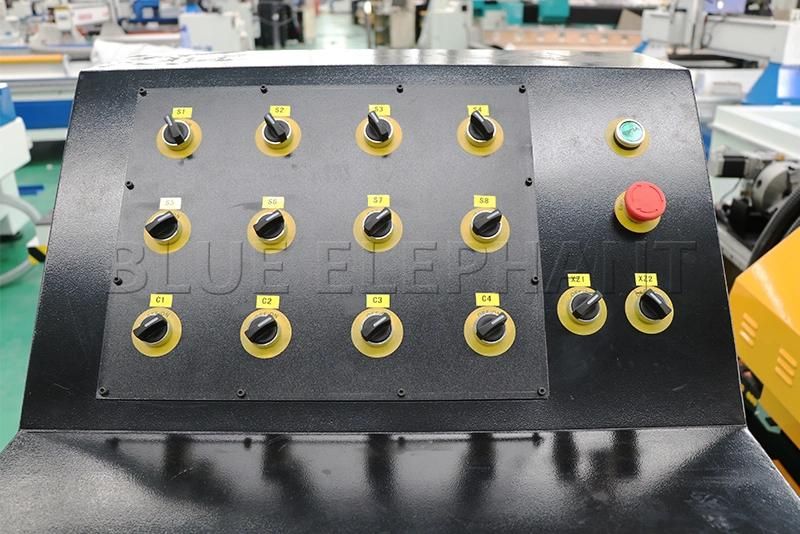

details and parts:
Applications:
1. Wood furniture industryDoors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Company information
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Welcome to our factory
