Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture

Jinan Blue Elephant CNC Machinery Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Three Spindles
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO, SGS BV TUV

Base Info

  • Model NO.：1325atc
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Voltage：380V or Option
  • Dimension(L*W*H)：3200X2100X1980mm
  • Control System：Taiwan Syntec Control System
  • Inverter：11kw Hpmont Inverter
  • Working Area：1300*2500*200mm(Customized)
  • Table Structure：T-Slot & Vacuum Working Table
  • Motor：850W Japan Yaskawa Servo Motor and Drivers
  • Software：Ucancam , Artcam,Type3
  • Application：Wood Working
  • Spindle：9kw Hqd Spindle 5+4 Hqd Drilling Heads
  • Transport Package：Standard Export Wooden Case
  • Specification：1300*2500*200mm
  • Trademark：BLUE ELEPHANT
  • Origin：Shandong, China
  • Production Capacity：200 Sets Per Month

Description

ModelELECNC-1325 ATCWorking Size1300*2500*300mmWorking Voltage380V, 3Phase, 50Hz ( Option)Control SystemTaiwan SYNTEC 6MB Control SystemSpindle9KW HQD Air Cooling SpindleSpindle Speed0-24000rpmInverter11KW Taiwan DELTA InverterMotor & Driver850W Japan YASKAWA servo motor and 1KW servo driverTable SurfaceT-slot & Vacuum TableLubrication SystemAuto Lubrication SystemGantry StructureGantry MovingSpray/ FlumeAutomatic Oil Mist CoolingStructureNew type thicker and bigger heavy duty welded frame and gantryX,Y,Z TransmissionHelical rack on X,Y axis and Taiwan TBI Ball Screw on Z axisX,Y,Z RailTaiwan ABBA/ PMI/ HIWIN Square Guide,#25Vacuum Pump5.5kw water vacuum pumpDust collectorNew type double packet dust collector (380V, 3Phase, 50Hz)Tool SensorAuto Tool Sensor Calibration

PS:All the working area and specifications can be customized according to your requests.

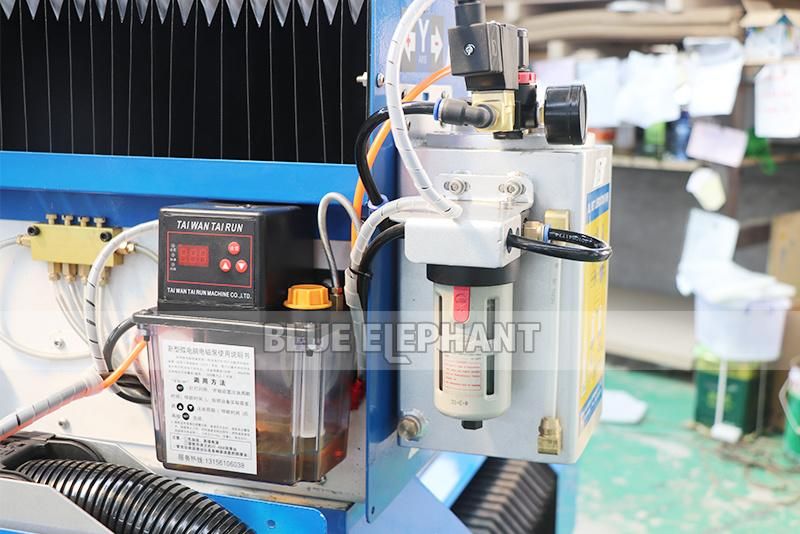

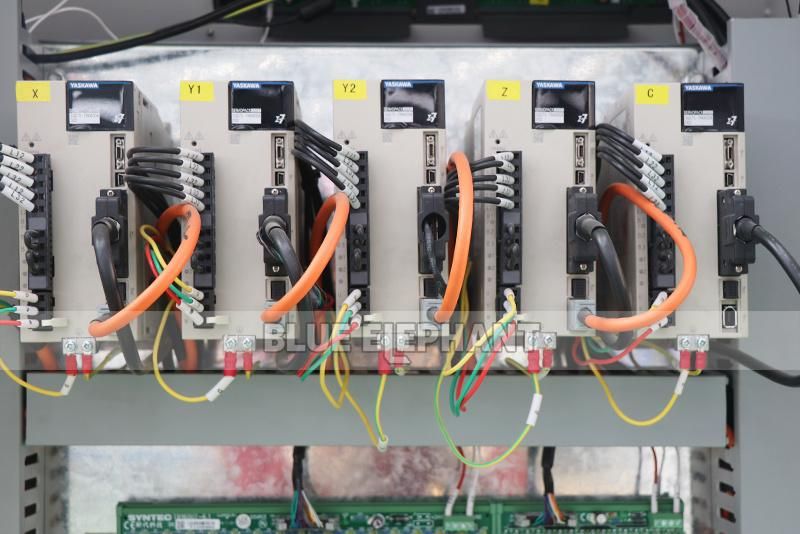

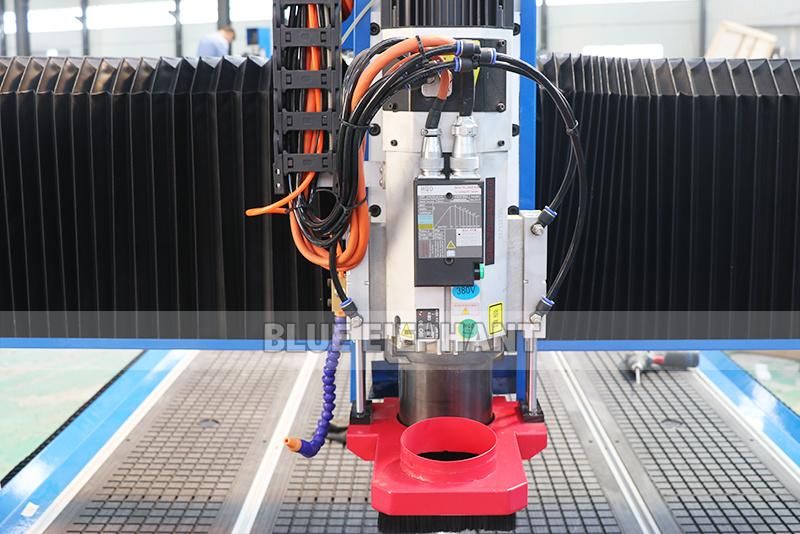

Detail images:
Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture
Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture
Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture
Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture

 Applications

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

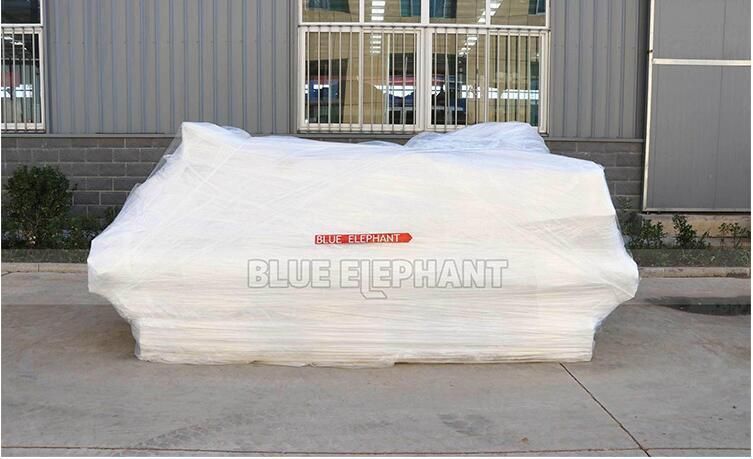

Packaging and shipping

Packaging Details: 1.Outside package:Standard marine export plywood case.
                                 2.inner package:Stretch film and plastic film for humidity.
                                  We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture
Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture

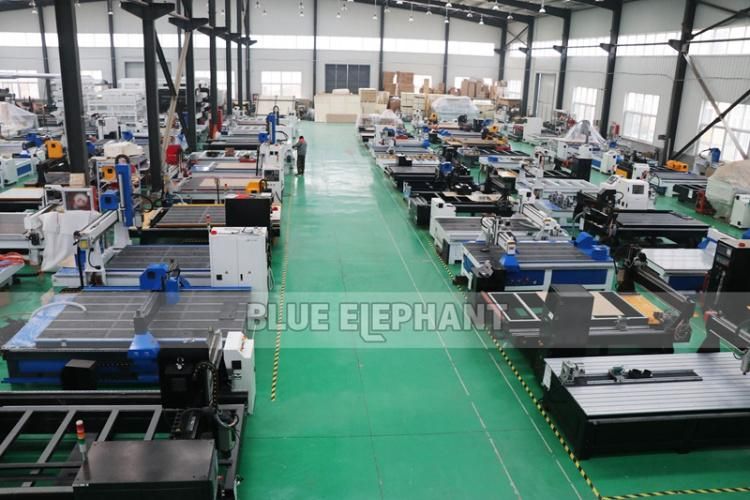

Our factory
Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture

Automatic Tool Changer Woodworking Machinery with Drilling Holes for Processing Wooden Furniture

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • Just looking forward to service every customer, like you.
