• Model NO.：2040
• Certification：CE, ISO, SGS BV TUV
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380V or Customized
• Control System：Ncstudio (Wei Hong) Pm95A-3L Control System
• Spindle：3.5kw Hqd Air Cooling Spindle*2
• Motor and Driver：750W Leadshine Servo Motor & Driver
• Working Area：2000*4000*200mm
• Transmission：Taiwan Tbi Ball Screw and Taiwan PMI Linear G
• Table：T-Slot & Vacuum Working Table
• Inverter：3.7kw Fuling Inverter
• Dimension(L*W*H)：5200*2280*1850mm
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

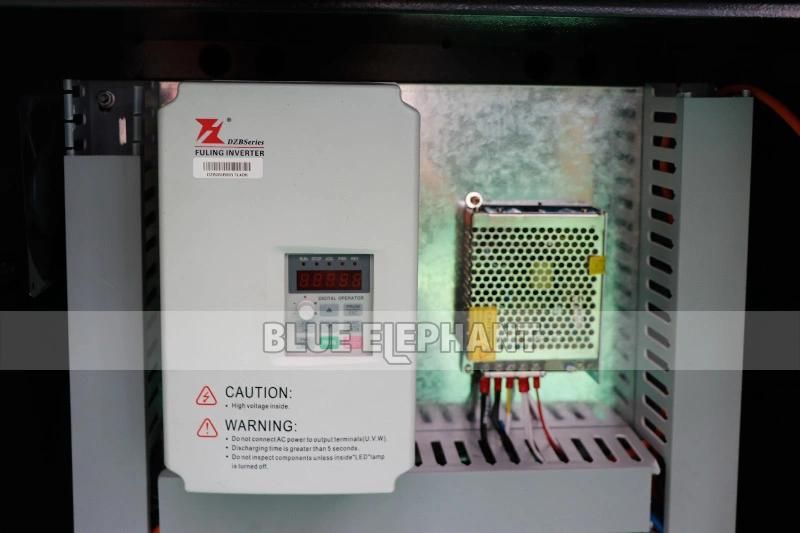

Inverter

3.7kw FULING Inverter

X,Y,Z Working Area

2000×4000*200mm

Table Surface

T-slot & vacuum working Table

X, Y Structure

china #25 linear guide rail, helical rack gear

Z Structure

Taiwan TBI Ball Screw

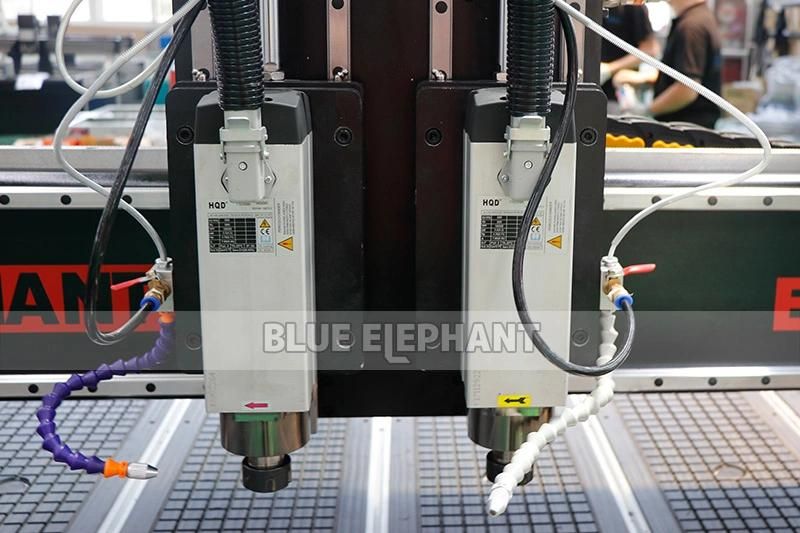

Spindle Power

3.5kw HQD Air Cooling Spindle*2

Drive Motors

750W Leadshine Servo Motor&driver

Working Voltage

AC220V/50/60Hz,3PH (Option: 380V)

Command Language

G Code

Operating System

Ncstudio (wei hong) PM95A-3L control system

Collet

ER32

X,Y Resolution

<0.01mm

Vacuum pump

7.5kw water circulation vacuum pump

Software Compatibility

Type3/UcancameV9 Software

Dust Collector

3.0kw Dust Collector*2bags

Running Environment  Temperature

0 - 45 Centigrade

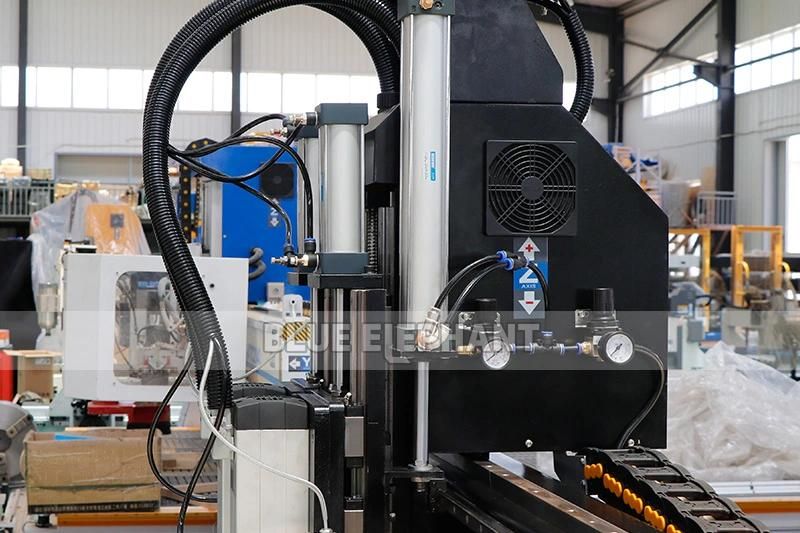

Detail Image

Applications

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

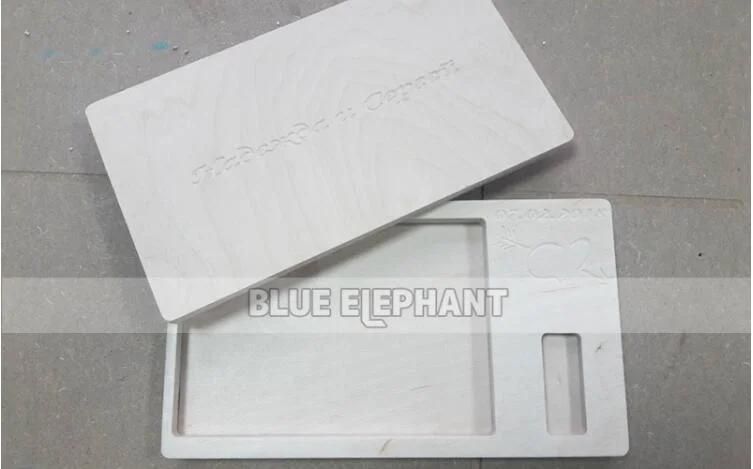

wood crafts; gift box; jewelry box

5. Others

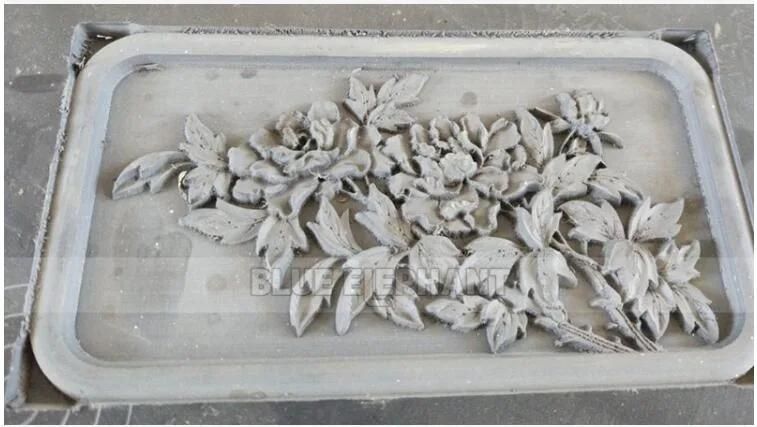

Relief sculpture and 3D engraving and Cylindrical object.

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.

Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

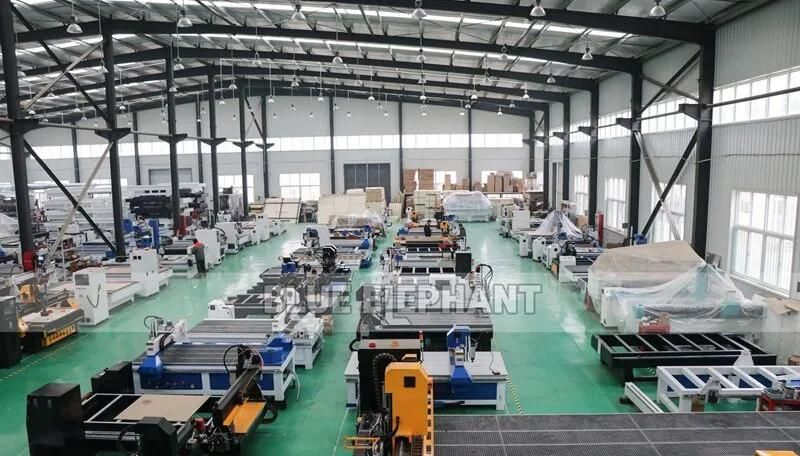

Our factory

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
