• Model NO.：1530
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380 V (220V for Option)
• Dimension(L*W*H)：3200X2140X1850mm
• Control System：DSP A123 4axis Control System
• Spindle：Hqd 3kw*3 Air Cooling Spindle
• Inverter：Taiwan 3.7kw Fuling Inverter
• Motor：Stepper FL118 and Yako 2811 Bigger Drivers
• Linear Rail：Taiwan PMI 25# Linear Guide
• Software：Artcam Software for Free
• Working Area：1500*3000*200mm
• Table Surface：T-Slot and Vacuum Working Table
• Drive Motors：Stepper FL118 and Yako 2811 Bigger Drive
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1500x3000x3000mm

Table Surface

T-slot & vacumm working Table

Frame

Heavy duty industrial class square tube strong structure

X, Y Structure

Helical rack gear for X, Y axis

Z Structure

Taiwan TBI ball screw for Z travel

Linear Rail

All axis with Sweden SKF ABBA linear guide

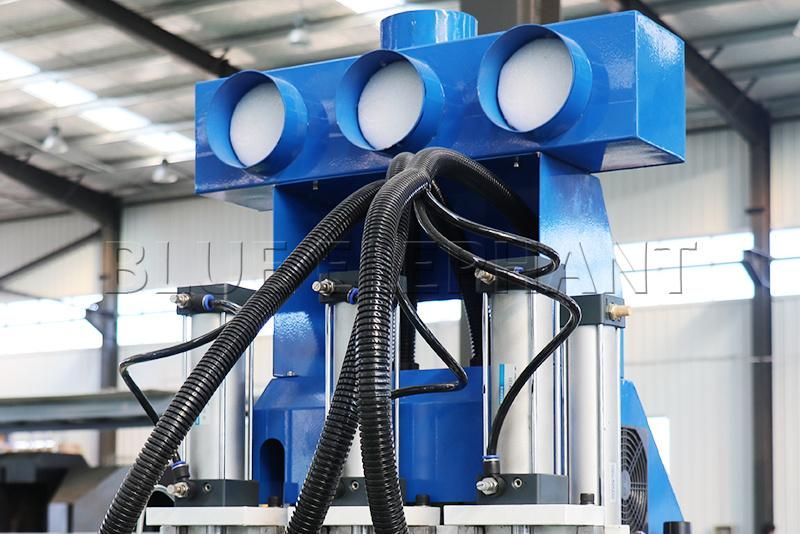

Spindle Power

HQD 3KW*3 air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper FL118 and YAKO 2811 bigger drivers

Working Voltage

AC220V/50/60Hz,3PH (Option: 380V)

Operating System

DSP A123 4 axis  control system

Inverter

Taiwan 3.7kw Fuling inverter

Software

Artcam software for free

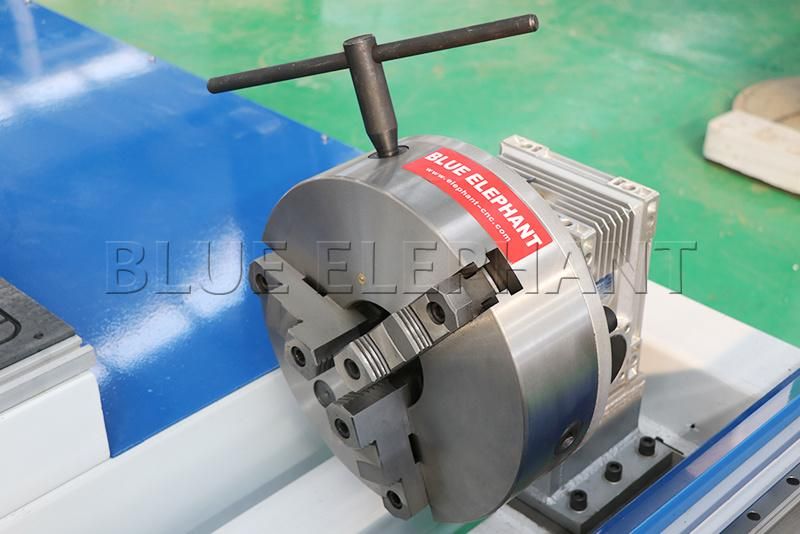

Rotary device

Dia. 300mm rotary axis attached.

PS: All the working area and specifications can be customized according to your requests.

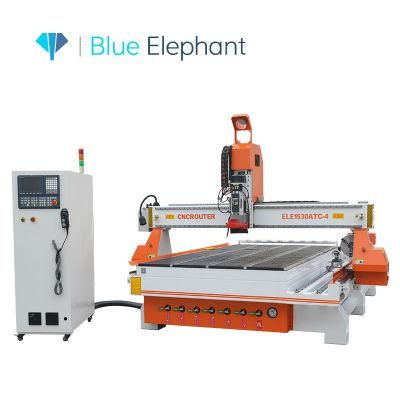

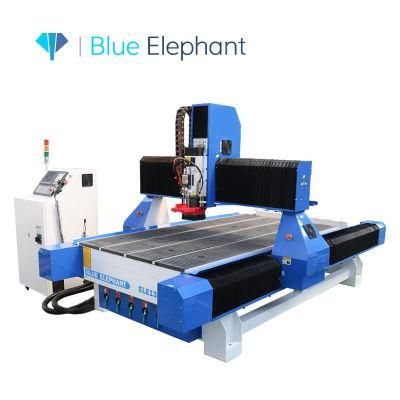

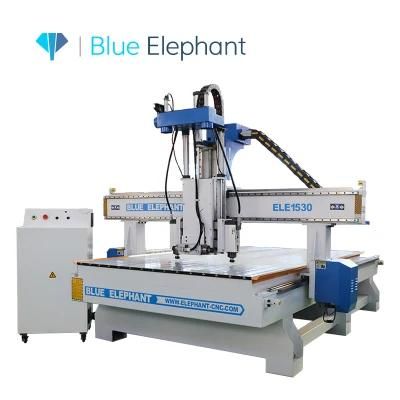

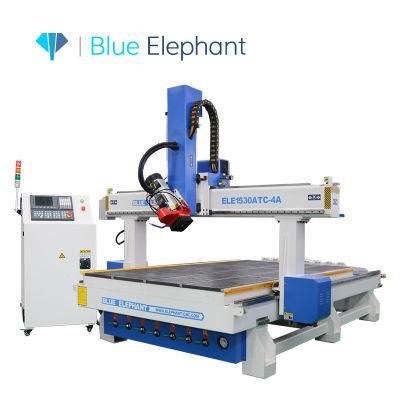

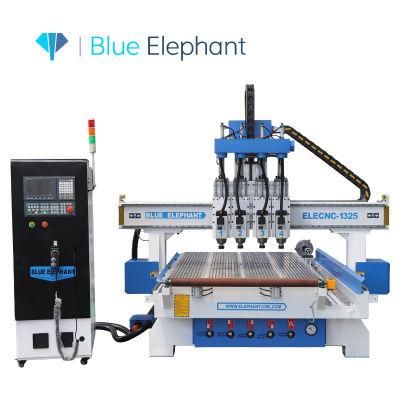

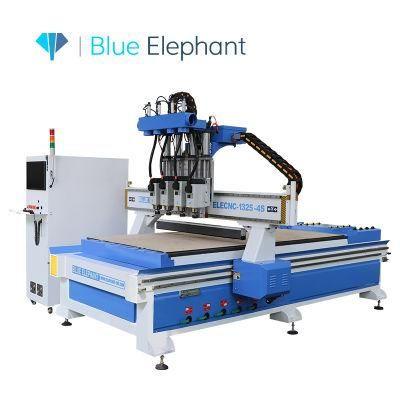

Detail images




Applications:

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

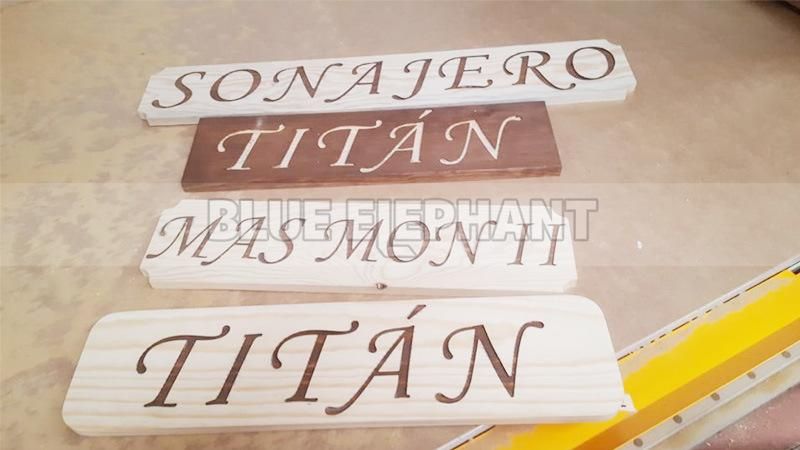

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.





Packaging & Delivery

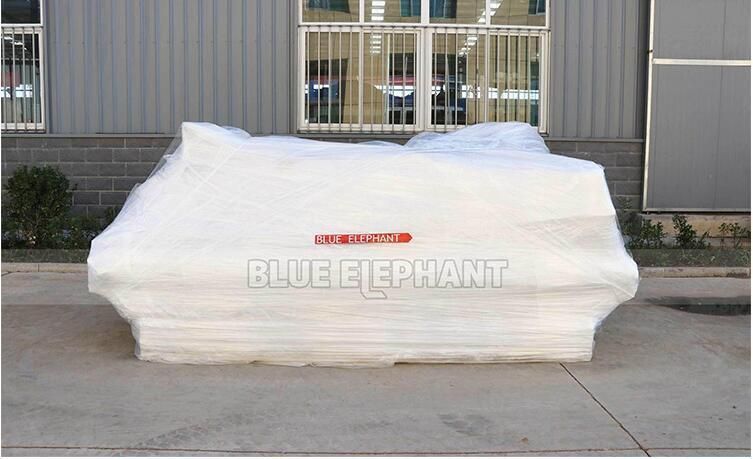

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.




Our Service
1.Teach you professional cnc router machine technology.
2.Provide you lifelong cnc router technology support service.
3.One year for the whole machine, lifelong maintenance.
4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
5.Network video communication and online telephone service in our w ork day.
6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.

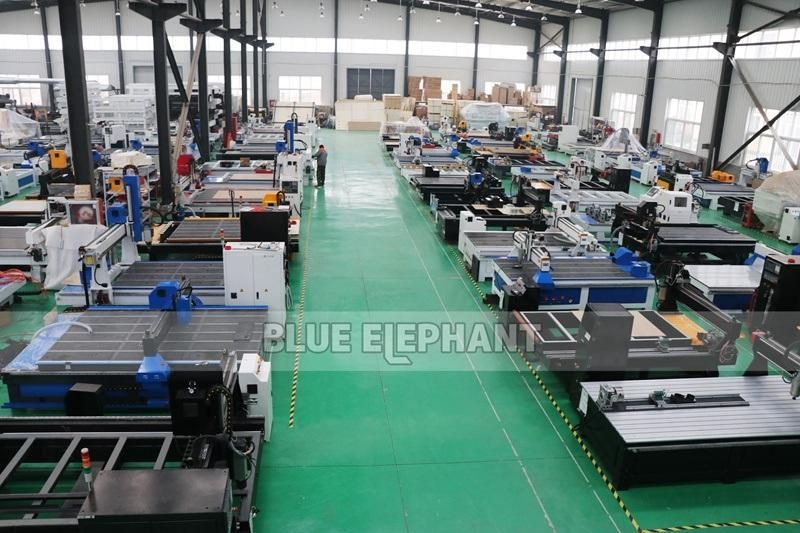

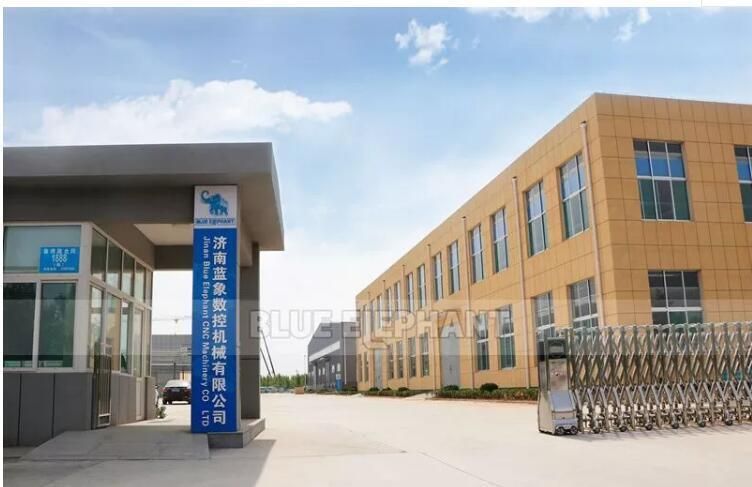

Our factory


Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.

• We have our R & D department, Quality control department, and after sale & service department.
• Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
• We had got CE and ISO9001 certification always offer best quality machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

Customer visiting







Contact us

Manager: Emma Lee

Web: blueelephant-cnc.en.made-in-china.com
