• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300X2500X200mm
• Table Surface：Vacuum and T-Slot Working Table, 4 Zones
• Spindle Power：4.5kw Changsheng Water Cooling Spindle
• Spindle Speed：0-24000rpm
• Inverter：5.5kw Fuling Inverter
• Drive Motors：Stepper FL118
• Working Voltage：380V, 3 Phase, 50,60Hz(Option: AC220V,50,60Hz, 3pH
• Transport Package：Standard Export Wooden Case
• Specification：1300*2500*200mm
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Working Area 1300X2500X200mm Table Surface Vacuum and T-Slot Working Table, 4 Zones Spindle Power 4.5kw Changsheng Water Cooling Spindle Spindle Speed 0-24000rpm Inverter 5.5kw Fuling Inverter Drive Motors Stepper FL118 Working Voltage 380V, 3 Phase, 50/60Hz(Option: AC220V/50/60Hz, 3pH Transport Package Standard Export Wooden Case Specification 1300*2500*200mm Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

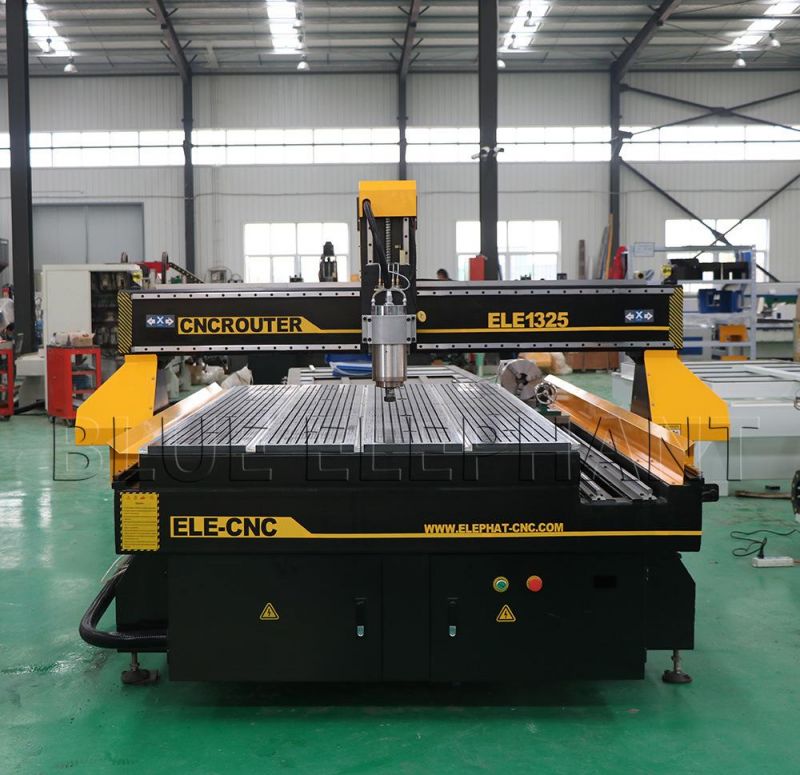

Jinan 1325 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving

Features:

• Heavy duty thicker and bigger welded steel tube frame - more stronger.
• 4.5KW water cooling spindle -low noise.

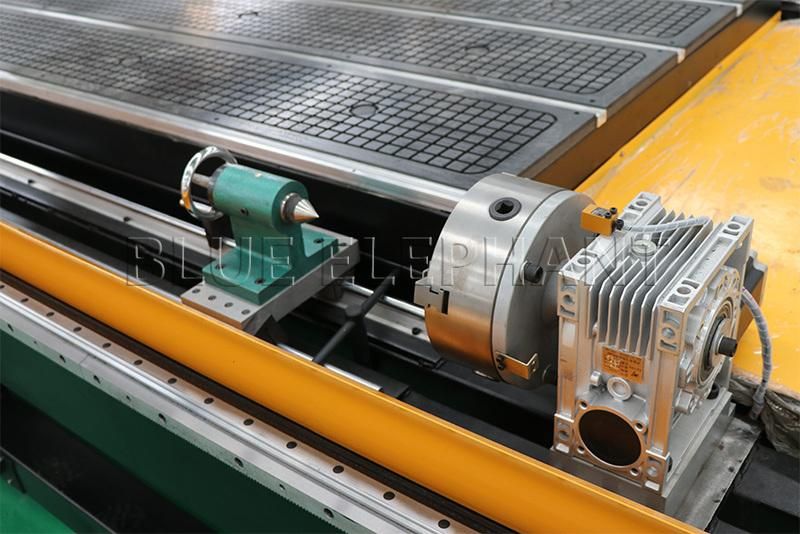

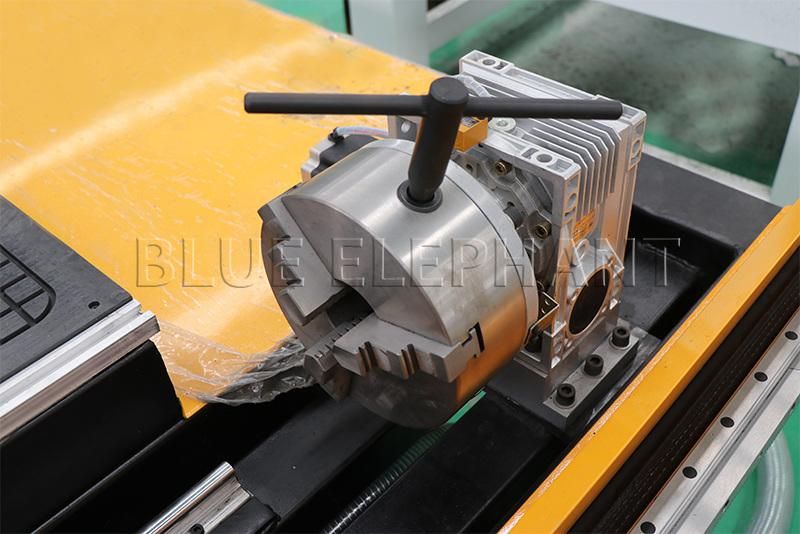

• One 200mm rotary on one side of machine, it can engrave the materials from different views.
• Mach3 control system can connect with computer, it is convenient to opertaion.
• Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.

Parameters:

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
Table Surface	Vacuum and T-slot working table,4 zones
Frame	New style heavy duty Welded Structure
X, Y Structure	Rack and Pinion Drive, #20 ABBA Rail Linear Bearings
Z Structure	Taiwan TBI ball screw
Spindle Power	4.5kw Changsheng Water Cooling Spindle
Spindle Speed	0-24000RPM
Inverter	5.5KW Fuling Inverter
Drive Motors	Stepper FL118
Working Voltage	380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)
Command Language	G Code
Operating System	Mach3 4 axis control system
Computer Interface	USB
Rotary device	200mm diameter*2000mm length
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Artcam software 2012
Running Environment  Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

PS:All the working area and specifications can be customized according to your requests.

Detail images:




Applications

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.



Packaging and shipping

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.




Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Our factory


Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
