• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500*200mm
• Control System：DSP A18 Controller
• Spindle：Italy Hsd Air Cooling Spindle
• Spindle Power：4.5kw
• Spindle Speed：0-18000rpm
• Motor：FL118 Stepper Motor
• Driver：Yako 2608 Driver
• Inverter：5.5kw Taiwan Delta Inverter
• Table Surface：T-Slot and Vacuum Working Table
• Application：Wood, MDF, Plywood, Acrylic, Soft Metal etc
• Transport Package：Standard Export Wooden Case
• Specification：3700*2140*1950mm
• Trademark：BLUE ELEPHANT
• Origin：Jinan City, Shandong Province, China
• Production Capacity：200set,Sets Per Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Working Area 1300*2500*200mm Control System DSP A18 Controller Spindle Italy Hsd Air Cooling Spindle Spindle Power 4.5kw Spindle Speed 0-18000rpm Motor FL118 Stepper Motor Driver Yako 2608 Driver Inverter 5.5kw Taiwan Delta Inverter Table Surface T-Slot and Vacuum Working Table Application Wood, MDF, Plywood, Acrylic, Soft Metal etc Transport Package Standard Export Wooden Case Specification 3700*2140*1950mm Trademark BLUE ELEPHANT Origin Jinan City, Shandong Province, China Production Capacity 200set/Sets Per Month

Product Description

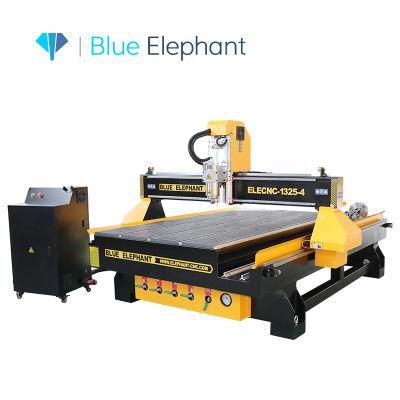

Simple Operation Smart 4 Axis MDF Cutting Cnc Center Router Machine 3 Axis 1325 for Aluminum Windows

Advantages:

• With chinese leadshine easy motor and driver, bigger power.
• 4.5kw Original Italy HSD air cooing spindle, The most famous brand, have after-sales service all over the world.

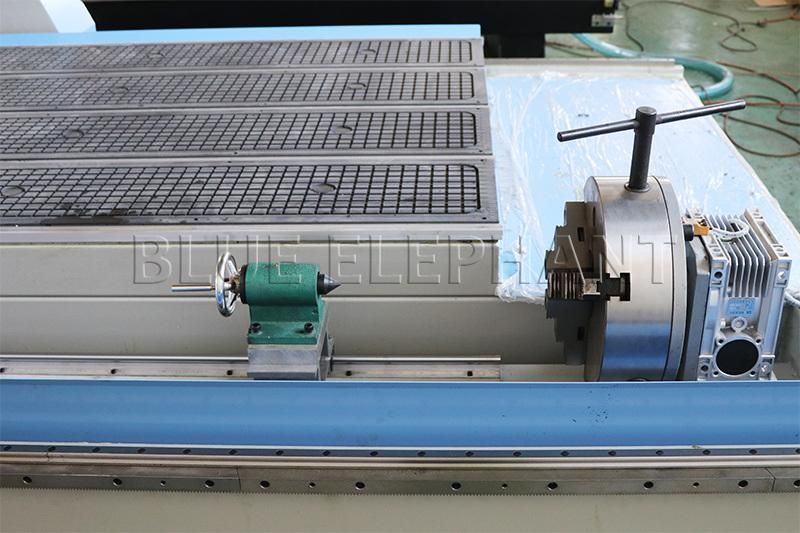

• 300mm rotary device on the side, for processing cylinders such as sofa legs, table legs etc.

Parameters:

Description	Parameter

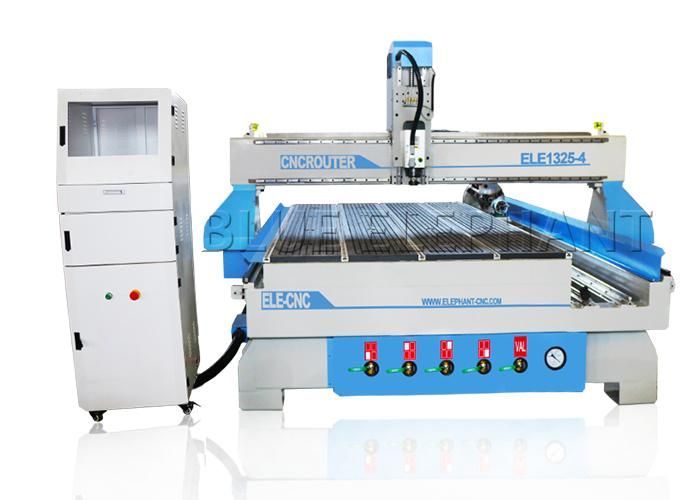

model	ELE1325-4
Working area(X*Y*Z)	1300*2500*200mm
Cutting accuracy	±0.01/300mm
Repositioning Accuracy	±0.01mm
Table Surface	Vacuum&T-slot Table
Frame	Welded Steel Square Tube Structure
X, Y Structure	Rack and Pinion Drive, Sweden ABBA #20 Rail Linear Bearings
Z Structure	Sweden ABBA #20 Rail Linear Bearings and Ball Screw
Spindle Power	4.5kw HSD air cooling spindle
Spindle Speed	0-18000 rpm
Rotary device	Diameter:300mm, Effective processing length: 2500mm
Inveter	5.5kw Taiwan DELTA inverter

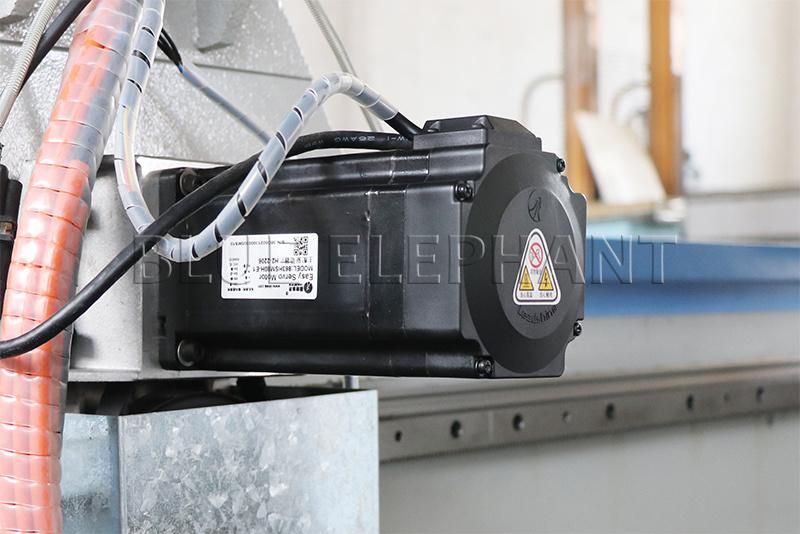

Drive Motors	Leadshine H2-2206 Hybrid Servo Motors and Drivers for all axis
Working Voltage	AC380V, 50Hz, 3PH (Option: 220V)
Command Language	G Code
Operating System	Mach3 4axis control System
Control box	Place the computer's big control box
Collet	ER32
Software Compatibility	ARTCAM Software
Lubrication system	Automatic lubrication system
Tool Sensor	Manual tool sensor calibration
Vacuum pump	5.5kw water circulation vacuum pump

PS:All the working area and specifications can be customized according to your requests.

Main parts:

Applicantions

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.


Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.




Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.


Our Factory

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• We have our R & D department, Quality control department, and after sale & service department.
• Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
• We had got CE and ISO9001 certification always offer best quality machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
