• Model NO.：BG183-5+1
• Power Source：Electric
• Certification：CE, ISO, FDA
• Heating Medium：Thermal Oil,Steam
• Veneer Thickness：0.5-1.2mm
• Working Decks：2
• Board Size：4*8FT,6*9FT,6*12FT
• Weight：27000kgs
• Drying Capacity：1.5m³;,Hour
• Transport Package：Container
• Specification：17300mm*4330mm*2900mm
• Origin：Shandong. China
• HS Code：8419320000
• Production Capacity：30sets,Month

Basic Info.

Model NO. BG183-5+1 Power Source Electric Certification CE, ISO, FDA Heating Medium Thermal Oil/Steam Veneer Thickness 0.5-1.2mm Working Decks 2 Board Size 4*8FT,6*9FT,6*12FT Weight 27000kgs Drying Capacity 1.5m³;/Hour Transport Package Container Specification 17300mm*4330mm*2900mm Origin Shandong. China HS Code 8419320000 Production Capacity 30sets/Month

Product Description

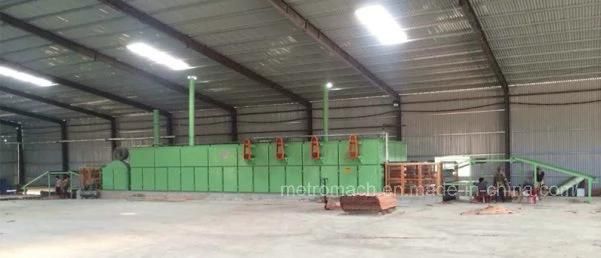

Dryer Machine Characteristics:
Mesh belt dryer is composed of several independent unit section. It is a kind of closed belt drier, characterized by open only feed end and discharge end, the remaining is closed, hot air steams inside the equipment, low heat loss, it can save a lot of energy.
1.configuration of equipment is flexible,One-time drying more of the material, and can continue to produce dry, easy to use, reduce more labor.
2.simple structure, easy installation,can run for a long time, the event of a failure can enter the box body internal repair, maintenance is convenient.
3.It can be heated by steam water or oil,so you can use steam boiler or oil boiler,and you can burn waste wood to heat the boilers. Cost is very low.
4.We can customize products according to customers' needs.

The Reasons of Choose us:
1.Multiple models are available and low price.
2.30years of industry experience, trustworthy.
3.Strength manufacturers, support inspection.
  Product Details :

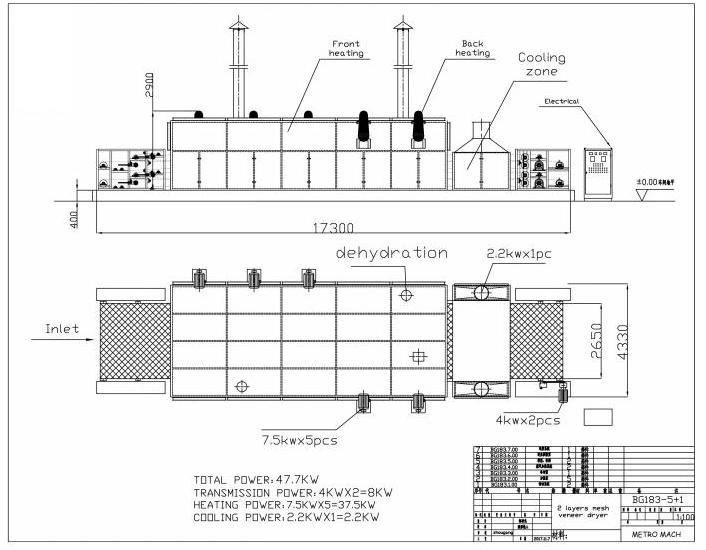

Model	BG183-5+1
Working width	2650mm
Working layers	2 layer mesh
Length of heating section	5×2000mm=10000mm
Length of cooling section	1×2000=2000mm
Total power	47.7kw
Transport motor	4kw×2=8kw, inverter controlled
Heating motor	7.5kw×5=37.5 kw
Cooling motor	2.2kw×1=2.2kw
Air pressure	0.5Mpa
Veneer transportation speed	2~30m/min,
Heating medium	Thermal oil/steam
Drying temperature	150~180ºC
Effective Heating consumption	700,000Kcal
Veneer density	590 kg/m³
Available veneer thickness	0.5~1.2mm
Veneer initial moisture content	60~70%
Veneer final moisture content	10±2 %
Drying capacity	1 .5m³/h
Load ratio	85%
Center distance of roller	500 mm
Mesh belt	304#stainless steel, 10×20×2650mm
Mesh position correction system	Omron infrared switch and emergency stop
Roller spacing	333 mm
Overall dimension(L*W*H)	17300×4330×2900mm
Front & Back  veneer conveyor	1 pc, 1850+1850mm
Overall machine weight	27tons
Electric parts	Schneider /LG brand

Q&A:
Q1:How many years experience does your company have in manufacture and exporting?
A1:Our company have 30 years manufacturing experience and 13 years exportingexperience
Q2:Where is your factory located in?
A2:We are located in Linyi city,Shandong province,Cina.
Q3:How can we go to visit your factory?
A3:There are fights/long-trip bus/train from Beijing, Shanghai, Guangzhou, Shenzhen city etc to Linyi city.
Q4:Which seaport you export from?
A4:We mainly exportmachines from Qingdao city, sometimes also from Shanghai etc.
Q5:Terms of payment?
A5:L/C  T/T     If you have any questions, you can contact us.
Q6:How to solve the after-sales problem?
A6:We can provide online guidance, and the company have professional overseas teams to help solve problem.

Our Services:
Pre-sales service:
Inquiry and consulting support.
Quotation service.
View our Factory.
Helpping you purchasing other goods is available.

Pre-sales service:
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
We can provide the production process of particle board.

Company Profile:
Linyi Metro Machinery Co., Ltd was founded in 1989 year, the earliest and biggest professional manufacturer of all kinds of wood-based panel machinery.

Our featured products include:

1. Face veneer rotary peeling production line.

2. Face veneer slicer peeling production line.

3. Plywood complete production line.

4. Particleboard / chipboard production line.

5. MDF/HDF production line.

6. Melamine lamination hot pressing line.

7. LVL complete production line.

We have two factories and one exporting company(Linyi Metro Int'l Trading Co, Ltd), our machines are widely used in more than 100 countries and helped customers to produce top quality wood based panels and occupy the good market.

We can design and manufacture all specifications machines to meet customers' production demand, professional after-sales team consisted of 20 rich experienced engineers are ready for any countries for machines installation and debugging service.

Welcome to visit our company, we will try our best to support your company.
