Assurance Ring Die Pellet Making Machine

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type：Wood Pellet Mill
  • Voltage：380V
  • Automatic Grade：Automatic
  • Controlling Mode：Artificial
  • Energy Saving：Energy Saving
  • Certification：CE, ISO

Base Info

  • Model NO.：WZLH420
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Multi Color
  • After-sales Service：Online Service
  • Capacity(T/H)：0.8-1.2
  • Main Power(Kw)：75,90
  • Pellet Size(mm)：6-8
  • Power of Screw Feeder(Kw)：3
  • Power of Force Feeder(Kw)：1.5
  • Transport Package：Iron Pallet and Soft Guard
  • Specification：CE, ISO9001
  • Trademark：FDSP
  • Origin：Jiangsu, China (Mainland)
  • HS Code：8479300000
  • Production Capacity：0.8-1.2t,H

Description

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Online Service Capacity(T/H) 0.8-1.2 Main Power(Kw) 75/90 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001 Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 0.8-1.2t/H

Product Description

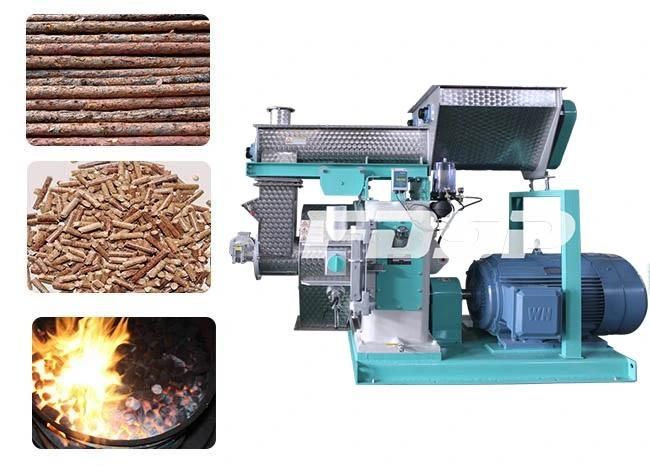

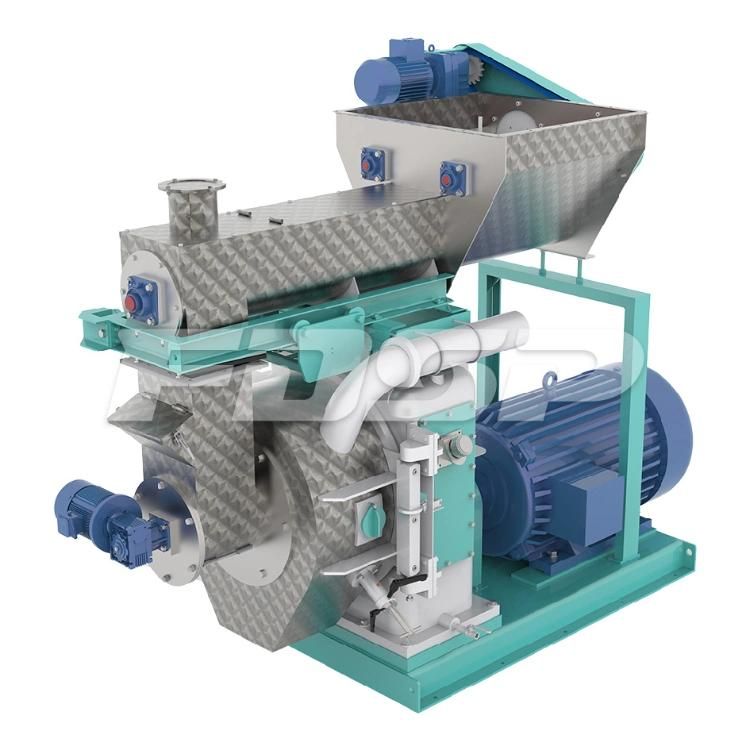

Assurance Ring Die Pellet Making MachineAssurance Ring Die Pellet Making Machine
Features
1. It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of  light substances with the density of 0.15-0.65g/cm3;
3. Feeder,conditioner and chute are made of stainless steel with long service life;
4. It is with magnet and over load protection system which can protect machine well during production;
5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;
6. The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.

Technical Parameters
ModelWZLH420WZLH508WZLH680
Ring die inner diameter (mm)420500688
Ring die working width(mm)90100110
Ring die linear speed (m/s)3.163.783.54
Number of clamp3 pcs3 pcs8 pcs
Number of roller2 pcs2 pcs2 pcs
Number of cutter1 pcs1 pcs1 pcs
Motor power90+2.2+0.7590+2.2+1.5185+3.0+1.5
Motor rotation speed750750595
Ring die hole   diameter(mm)6/8/106/8/106/8/10

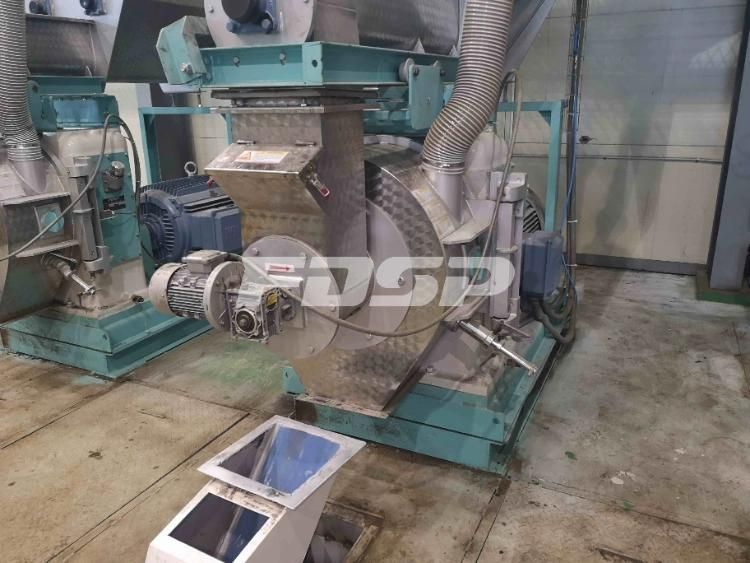

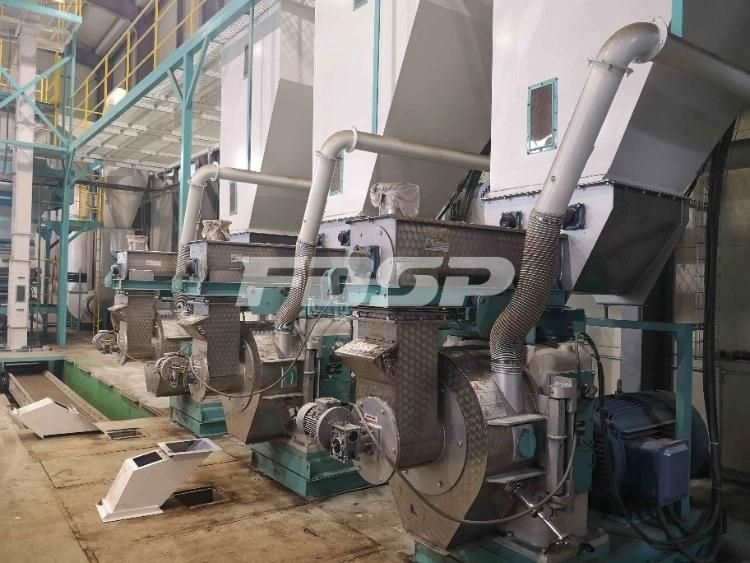

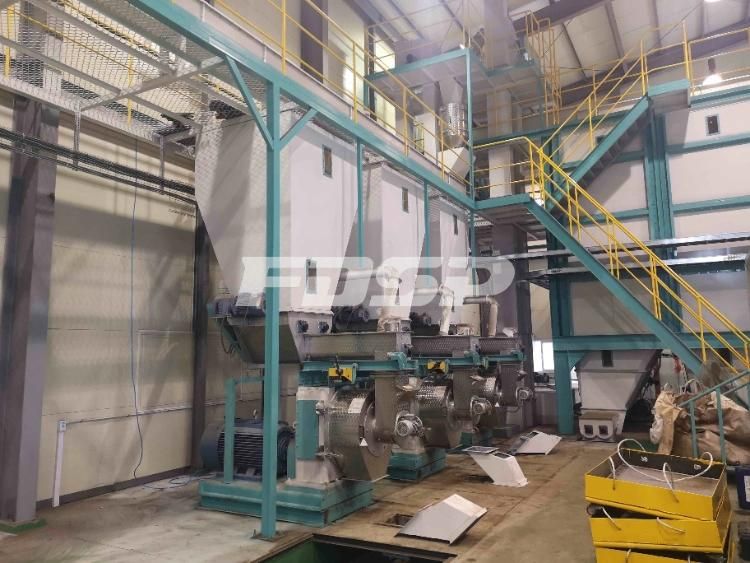

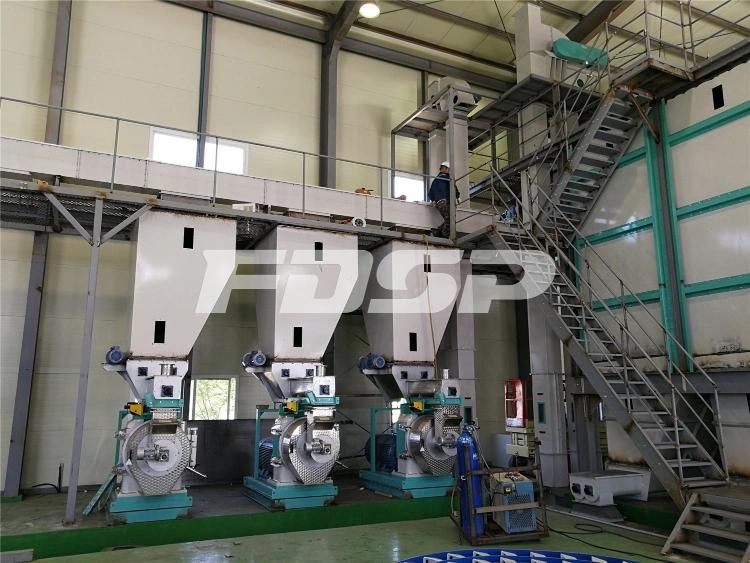

WZLH420 in the projects
Assurance Ring Die Pellet Making MachineAssurance Ring Die Pellet Making MachineAssurance Ring Die Pellet Making MachineAssurance Ring Die Pellet Making Machine
Biomass wood pellet application:
1. Civilian heating:high use ratio and easily
2. Biomass industrial boiler:be used as the main fuel of the industrial boiler,solve the problem of environmental pollution.
3. Power generation:be as the fuel of thermal power generation.
Assurance Ring Die Pellet Making Machine

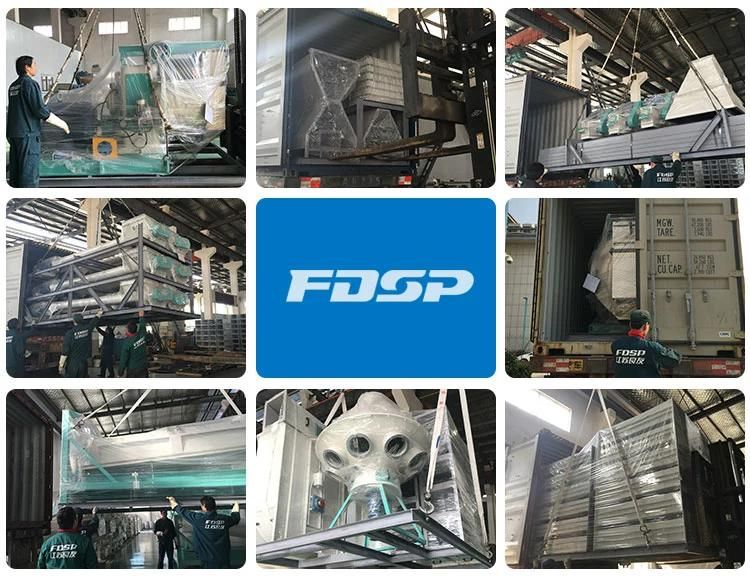

Packing & Shipping

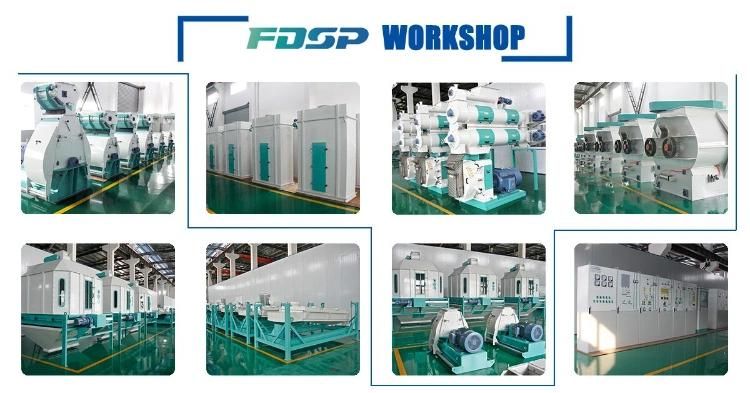

Assurance Ring Die Pellet Making MachineFDSP Workshop
Assurance Ring Die Pellet Making Machine
About Us
Assurance Ring Die Pellet Making MachineAssurance Ring Die Pellet Making MachineAssurance Ring Die Pellet Making Machine
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
