China Supplier Biomass Straw Hammer Mill Machine Wood Grinding Equipment

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type：Wood Hammer Mill
  • Voltage：380V
  • Automatic Grade：Automatic
  • Controlling Mode：CNC
  • Energy Saving：Energy Saving
  • Certification：CE, ISO, SGS

Base Info

  • Model NO.：MFSP68 Series
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Blue
  • Output (T/H)：1.5-8
  • Power (Kw)：45,55,75,90,110,132,160,200kw
  • Rotor Diameter：680mm
  • Grinding Chamber Width：600,800,1000,1200mm
  • Rotating Speed：2970rpm
  • Linear Speed of Hammer：108m,S
  • Transport Package：Pallet
  • Specification：CE, ISO, SGS
  • Trademark：Liangyou
  • Origin：Jiangsu China
  • HS Code：8436800000
  • Production Capacity：10 Sets,Month

Description

Basic Info.

Model NO. MFSP68 Series Warranty 1 Year Customized Customized Condition New Color Blue Output (T/H) 1.5-8 Power (Kw) 45/55/75/90/110/132/160/200kw Rotor Diameter 680mm Grinding Chamber Width 600/800/1000/1200mm Rotating Speed 2970rpm Linear Speed of Hammer 108m/S Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 8436800000 Production Capacity 10 Sets/Month

Product Description

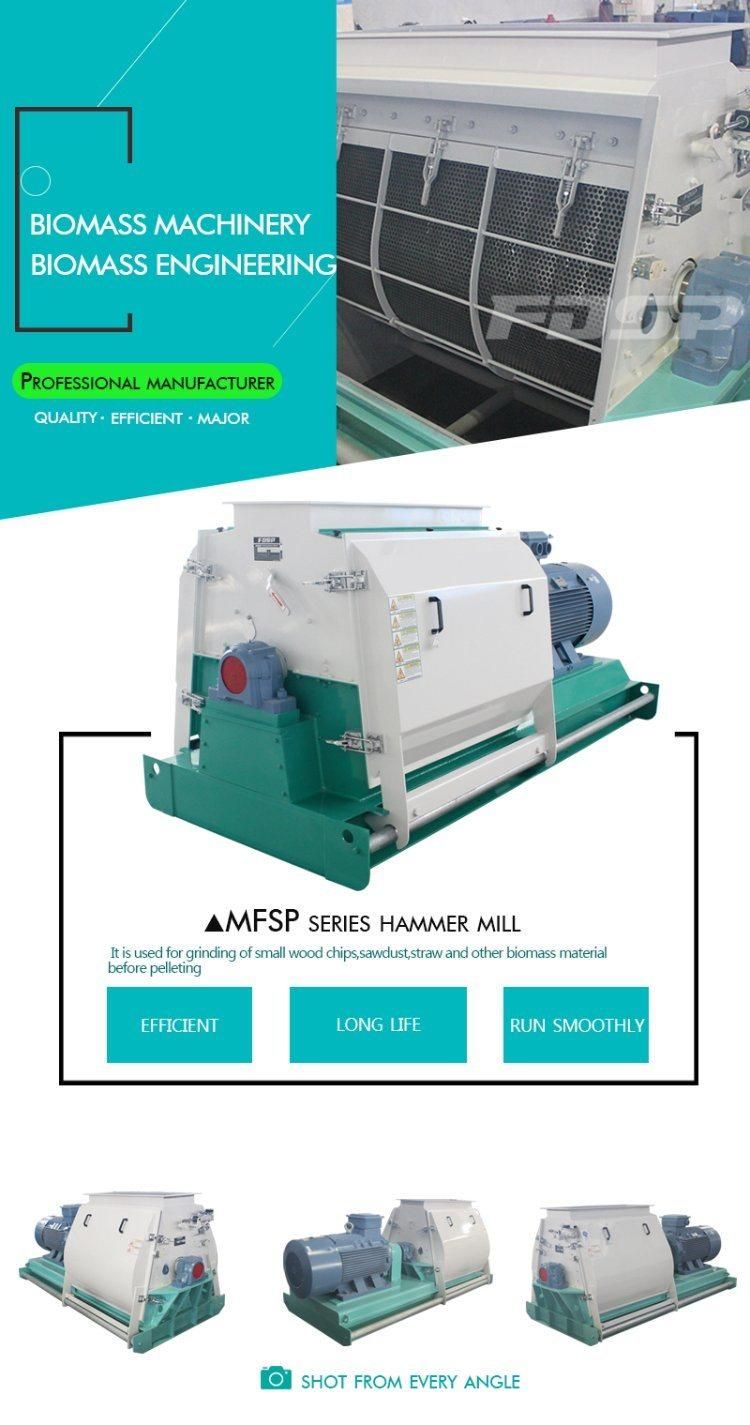

China Supplier Biomass Straw Hammer Mill Machine wood Grinding Equipment

MFSP series hammer mill is suitable for a variety of wood and straw raw materials, such as: small wood chips, shavings, small bamboo chips, coconut shells, peanut shells, etc.

 Features:

1. Adopting steel plate welding structure, the hammer mill rotor and the motor are mounted on the same base, and the serpentine spring coupling is directly connected to the transmission, and the transmission efficiency is high;

2. The base is welded with thick steel plate and reduces the center of gravity of the spindle to effectively improve the vibration phenomenon;

3. The rotor is dynamically balanced to make the rotor work smoothly and can work in forward and reverse directions to extend the service life of the wearing part;

4. The operation door has a safety interlock to ensure that the motor cannot be started when the operation door is opened, ensuring safety;

5. Replace the bearing with a larger load. Effectively improve the temperature rise of the bearing. Effectively extend bearing life;

6. Quick-open full-open mobile access door; (national patent)

 Parameters of technical and performance as below:
ModelMFSP68*60MFSP68*80MFSP68*100MFSP68*120
Power(kw)45/5575/90110/132160/200
Capacity(t/h)1.5-2.52-43-55-8
Rotor diameter(mm)680680680680
Grinding chamber width(mm)60080010001200
Rotating speed(m/rpm)2970297029702970

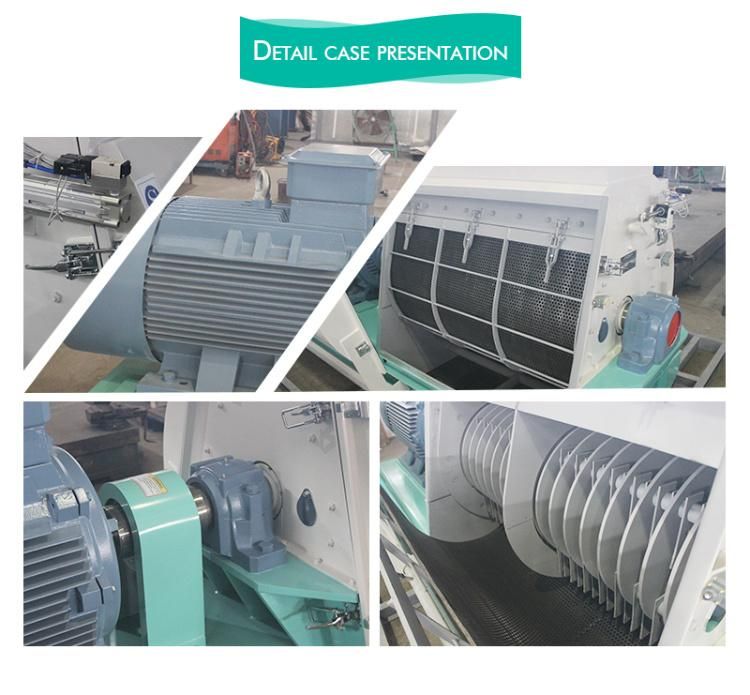

 Details:
China Supplier Biomass Straw Hammer Mill Machine Wood Grinding Equipment
China Supplier Biomass Straw Hammer Mill Machine Wood Grinding Equipment
About us:China Supplier Biomass Straw Hammer Mill Machine Wood Grinding Equipment
China Supplier Biomass Straw Hammer Mill Machine Wood Grinding Equipment
China Supplier Biomass Straw Hammer Mill Machine Wood Grinding Equipment

FAQ:
1.Q:Are you a factory or trading company?
 A:We are a manufacturing and trading company.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.Our company is located in Nanjing City,Jiangsu Province,China.You can fly to Shanghai
airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How does your factory do regarding quality control?
 A:"Quality is our soul. We always attach great importance to quality controlling from the beginning to the end. We have many engineers to R&D our products.

4.why choose our products?
A:Good products! Good reputation! Good service! Good price!
