Good Quality Hot Sale Industrial Wood Waste Forming Pellet Making Machine
Jiangsu Liangyou Zhengda Co., Ltd.- Type:Wood Pellet Mill
- Voltage:380V
- Automatic Grade:Automatic
- Controlling Mode:Artificial
- Energy Saving:Energy Saving
- Certification:CE, ISO
Base Info
- Model NO.:WZLH420
- Warranty:1 Year
- Customized:Customized
- Condition:New
- Color:Multi Color
- After-sales Service:Provided
- Capacity(T/H):0.8-1.2
- Main Power(Kw):75-90
- Pellet Size(mm):6-8
- Weight(Kg):3200
- Transport Package:Iron Pallet and Soft Guard
- Specification:1000KG
- Trademark:FDSP
- Origin:Jiangsu, China (Mainland)
- HS Code:8479300000
- Production Capacity:0.8-1.2t,H
Description
Basic Info.
Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.8-1.2 Main Power(Kw) 75-90 Pellet Size(mm) 6-8 Weight(Kg) 3200 Transport Package Iron Pallet and Soft Guard Specification 1000KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 0.8-1.2t/HProduct Description
Good Quality Hot Sale Industrial Wood Waste Forming Pellet Making MachineApplication of ring die biomass pellet machine:
It is mainly used for agro-forestry residues ,such as straw ,cotton stalk , rice husk ,peanut shell ,bamboo,empty fruit branch,pulverized coal and waste paper etc.
Features:
Item | Wood waste forming machine making pellet as fuel |
Pellet Mill Type | - With Standard Feeder - With Anti-broken Feeder |
Technical Parameters | - Capacity: 0.8-1.2(T/H) - Size: 2800*1150*2100(mm) - Power: 75/90KW - Inner diameter of die: 420(mm) - Pellet size: 6ø, 8ø, 10ø(mm) - Net weight: 4000(kg) |

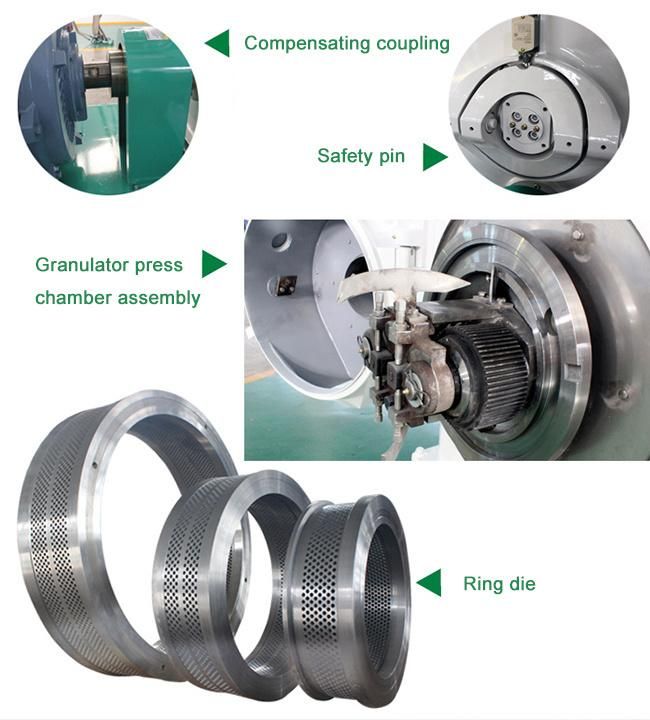

Main Features | - CE & ISO & SGS certification - Siemens motor, NSK/ SKF bearing - High precision gear-driven transmission system - One ring die and two rollers system |
Optional Parts | - Screw feeder with anti-broken - Conditioner: To adjust the moisture of raw material. - Auto cooling system for gear-box(large capacity) |
Packing Mode | Iron pallet with stretched film, etc |
MOQ | 1 set |
Payment | L/C, T/T, Western Union, Money Gram... |
Warranty | 12 months |
Performance Parameter
Model | WZLH420 | WZLH508 | WZLH680 |
Ring die inner diameter (mm) | 420 | 500 | 688 |
Ring die working width(mm) | 90 | 100 | 110 |
Ring die linear speed (m/s) | 3.16 | 3.78 | 3.54 |
Number of clamp | 3 pcs | 3 pcs | 8 pcs |
Number of roller | 2 pcs | 2 pcs | 2 pcs |
Number of cutter | 1 pcs | 1 pcs | 1 pcs |
Motor power | 90+2.2+0.75 | 90+2.2+1.5 | 185+3.0+1.5 |
Motor rotation speed | 750 | 750 | 595 |
Ring die hole diameter(mm) | 6/8/10 | 6/8/10 | 6/8/10 |
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
Certificates
Our products have passed CE certification long before, also the pellets is with SGS certification. Our company is with ISO9001 certification.
Besides, we have a professional technical team, with two departments for developing single machine and customizing complete pellet line solution. Most of our engineers are with over 20 years' experience in this field and also have a lot of experience in overseas projects.
With our outstanding technical team, we have earned a lot of certifications for our machines, together with a lot of patented design.
