Well Exported Biomass Ring Die Wood Pellet Mill
Jiangsu Liangyou Zhengda Co., Ltd.- Type:Ring Die Wood Pellet Machine
- Voltage:220V
- Automatic Grade:Automatic
- Controlling Mode:Artificial
- Energy Saving:Energy Saving
- Certification:CE, ISO
Base Info
- Model NO.:WZLH420
- Warranty:1 Year
- Customized:Customized
- Condition:New
- Color:Multi Color
- After-sales Service:Provided
- Brand:Fdsp
- Name:Mzlh420 Biomass Pellet Mill
- Application:for Biomass Fuel Granulator
- Transport Package:Iron Case
- Specification:1500kg
- Trademark:FDSP
- Origin:Jiangsu China
- HS Code:8436100000
- Production Capacity:10 Sets,Month
Description
Basic Info.
Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Brand Fdsp Name Mzlh420 Biomass Pellet Mill Application for Biomass Fuel Granulator Transport Package Iron Case Specification 1500kg Trademark FDSP Origin Jiangsu China HS Code 8436100000 Production Capacity 10 Sets/MonthProduct Description

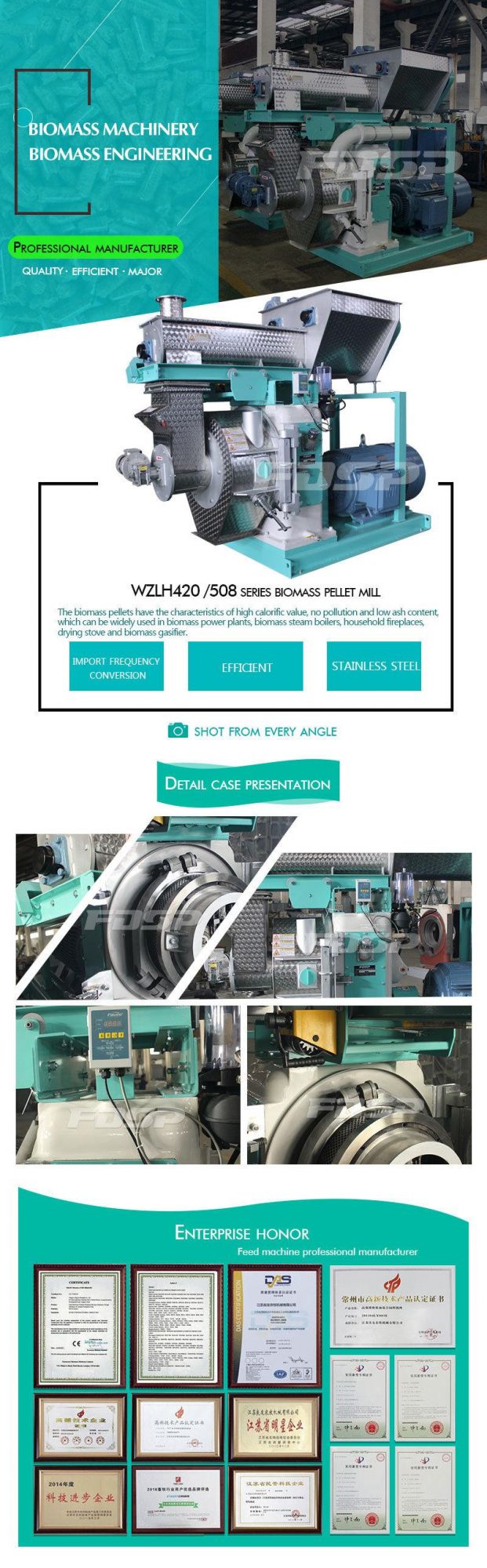

Well Exported Biomass Ring Die Wood Pellet Mill
It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on.
Product Features:
It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of light substances with the density of 0.15-0.65g/cm3;
Feeder,conditioner and chute are made of stainless steel with long service life;
It is with magnet and over load protection system which can protect machine well during production;
It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;
The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.
Model | WZLH420 | WZLH508 | WZLH680 |
Ring die inner diameter (mm) | 420 | 500 | 688 |
Ring die working width(mm) | 90 | 100 | 110 |
Ring die linear speed (m/s) | 3.16 | 3.78 | 3.54 |
Number of clamp | 3 pcs | 3 pcs | 8 pcs |
Number of roller | 2 pcs | 2 pcs | 2 pcs |
Number of cutter | 1 pcs | 1 pcs | 1 pcs |
Motor power | 90+2.2+0.75 | 90+2.2+1.5 | 185+3.0+1.5 |
Motor rotation speed | 750 | 750 | 595 |
Ring die hole diameter(mm) | 6/8/10 | 6/8/10 | 6/8/10 |
Biomass wood pellet application:
Civilian heating:high use ratio and easily
Biomass industrial boiler:be used as the main fuel of the industrial boiler,solve the problem of environmental pollution.
Power generation:be as the fuel of thermal power generation.
Equipment Configuration:
Ring die materials:4Cr13
Stainless steel feeder:With broken arch function
Door cover of granulating chamber:-6/SUS304
Forced feeding: worm gearing reducer
Gearbox Casing:HT250
Wheel gear:42CrMo
Gear shaft:20CrMnMo
Main shaft:40Cr
Hollow shaft:forge piece 45#
Bearing:gear shaft, main shaft bearing is NSK, roller bearing is domestic high quality bearings
Oil seal:Germany/Taiwan
Overload mechanical protection:safety pin
Serpentine spring coupling drive
Lubrication system: Automatic oil filling system is available
Morot: Siemens (China) motor or Wannan motor

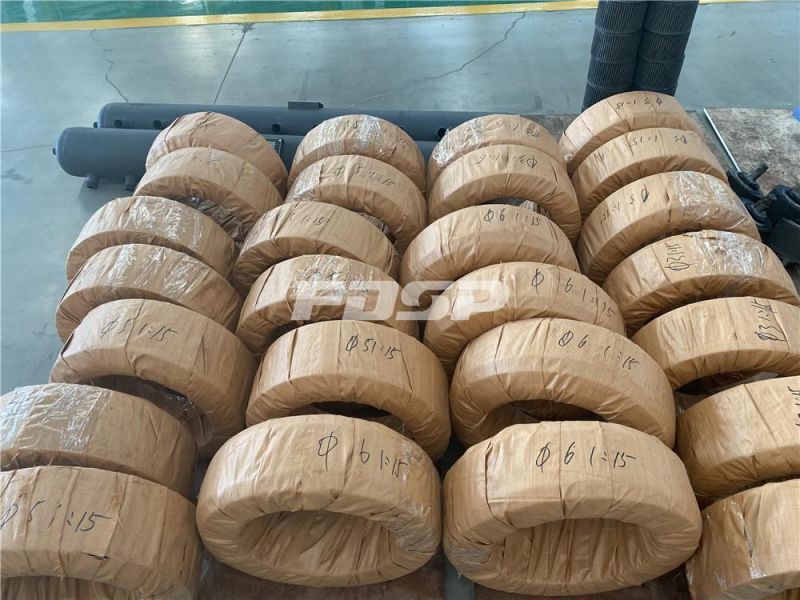

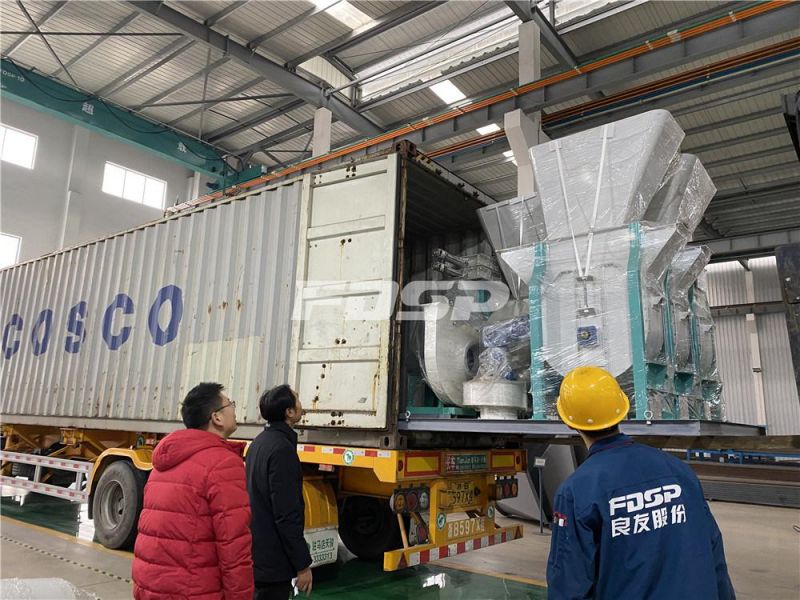

Packing to ship:

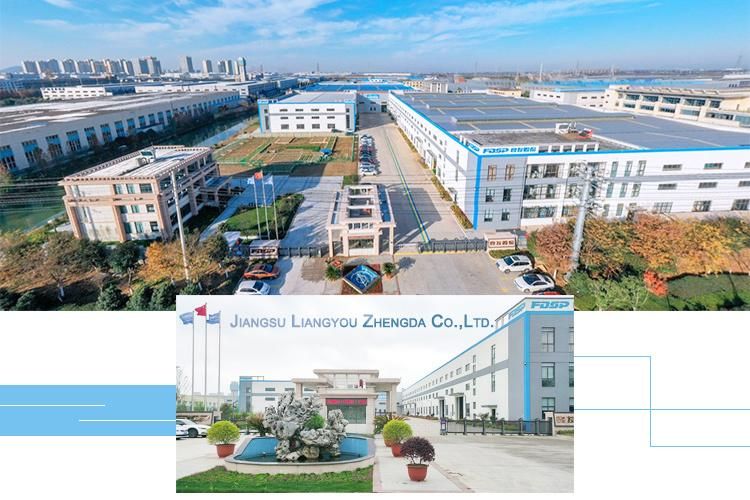

FDSP Since 2003
Jiangsu Liangyou Zhengda Co.,Ltd. (FDSP) was founded in the year of 2003, which locates in Jiangsu Zhongguancun Science and Technology Industrial Park, Liyang city, boundary of Jiangsu, Zhejiang and Anhui provinces, covering the area of 35000m2. As a national high-tech enterprise,FDSP company will always be the first rank, which is the supplier and advanced system solution for the Feed machinery, biomass machinery, fertilizer machinery and project, etc. The main business is design, research, manufacture, sale, installation and wholesale project service for feed machinery, biomass machinery, fertilizer machinery, silo machinery, pellet mill molds and intelligent control system.
Feed Machinery&Engineering: provide customer complete solution for "producing clean and safe feed ", could undertake 2-150T /H livestock and poultry feed project, 1.5-30T/ H premix project, 1-60T/ H aquatic feed project, and 0.5-20T/ H pet food project, so as to provide the society with safe food for such as livestock and poultry and aquaculture, and realize one-stop service "from farm to table".
Biomass Machinery&Engineering: Making use of forestry waste and agricultural raw material like tree, sawdust, bark, branches and crop straws to produce biomass pellet fuel, and undertake annually 10,000 tons to 200,000 tons output sawdust pellet project, straw pellet project, sludge and sawdust mixture pellet project, coal pellet project, etc., to provide clean energy for the world.
Fertilizer Machinery &Engineering: Using crop waste, manure and household waste to make bio-organic fertilizer pellets, undertake annually 10,000 tons to 100,000 tons output bio-organic fertilizer fermentation equipment, organic and inorganic compound fertilizer complete projects, to promote the healthy cycle development for organic agriculture.
Silo Machinery& Engineering: Suitable for grain, feed, oil, flour, brewing, building materials, chemical industry, port environmental protection and other industrial fields, steel silo engineering can provide customers with 50-6000T each spiral silo, 10-10000T each bolted silo, 50-1000T /H large conveying equipment engineering.
FDSP continuously creates more and bigger value for customers at home and abroad , and unswervingly seeks "mutual benefit, together development" with the customers.
