• Model NO.：YHP8
• Voltage：380,415V
• Hot Platen Quantity：16
• Hot Platen Size：1370X2700X42 mm
• Drying Method：Steam or Thermal Oil
• Distance Between Layers：50-70mm
• Motor Power：7.5kw
• Weight ：33500kg
• Warranty：1year
• Function：Plywood LVL Bb Pressing
• Application：Plywood Line
• Hot Platen Inside Pipeline：Two Inlets and Two Outlets
• Transport Package：Shrinkage Film for Overall of Main Equipment
• Specification：5410*2085*3280mm
• Trademark：YIHE MACHINERY
• Origin：Linyi China
• Production Capacity：20sets,Month

Basic Info.

Model NO. YHP8 Voltage 380/415V Hot Platen Quantity 16 Hot Platen Size 1370X2700X42 mm Drying Method Steam or Thermal Oil Distance Between Layers 50-70mm Motor Power 7.5kw Weight  33500kg Warranty 1year Function Plywood LVL Bb Pressing Application Plywood Line Hot Platen Inside Pipeline Two Inlets and Two Outlets Transport Package Shrinkage Film for Overall of Main Equipment Specification 5410*2085*3280mm Trademark YIHE MACHINERY Origin Linyi China Production Capacity 20sets/Month

Product Description

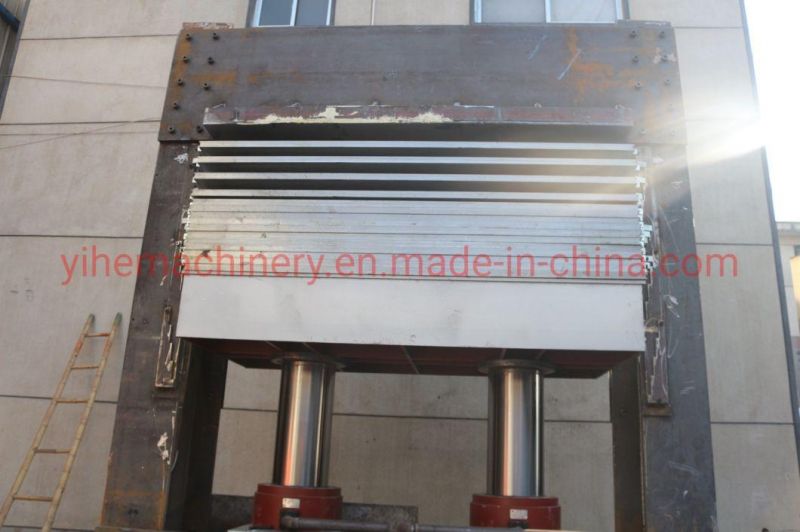

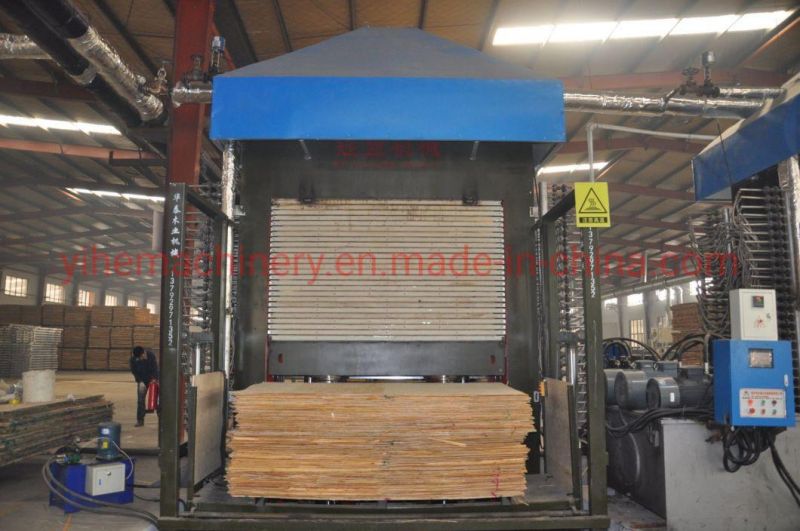

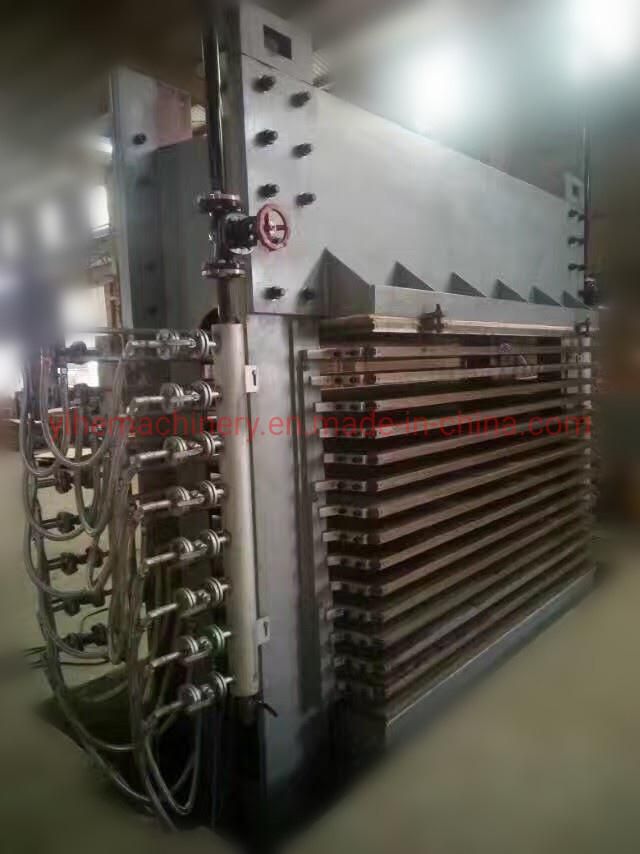

Hot press machine for plywood in China




Plywood hot press machine is one of main equipment in the plywood production line.It is the equipment for hot pressing of the board slab after the glue combination.Thee different types of plywood has different requirements on the performance of the press:Ordinary plywood aero plywood, plastic panel, wood laminated plastic board and ship plywood are required to increase the pressure in turn.Plywood hot press consists of three parts:The hot press main machine, the control drive part and the heating system.






Features:

1) Simple combined structure, easy for transportation, installation and maintenance
2) Adopting advanced world famous brand components in hydraulic parts, electric parts and operation parts.
3) Italy hydraulic Technic.Lifting cylinder to accelerate the closing and opening time and with much less working
Noise.
4) Running in a high automation and Intelligentization, no pollution
5) Working with the pressure detector system and controlled system running by  solenoid valve.







Technical Specifications

Normal pressure:	500T
Direction of boards inlet:	Transverse
Layers:	15
Opening distance:	70mm
Quantity of hot platens:	16

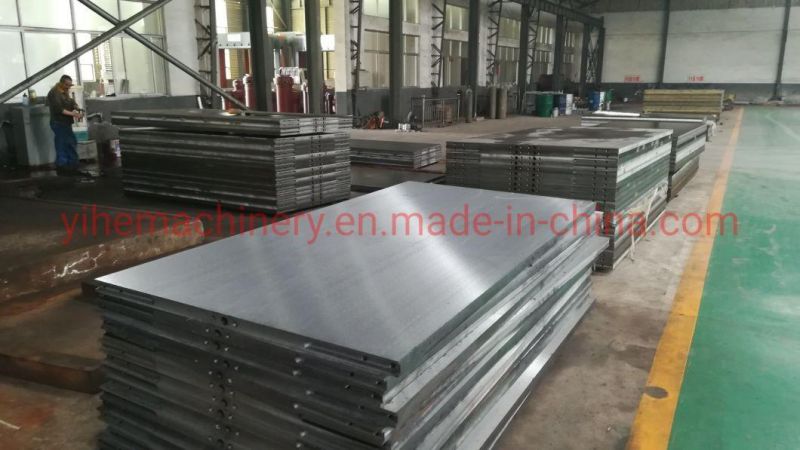

Size of hot platen:	1370x2700x42mm

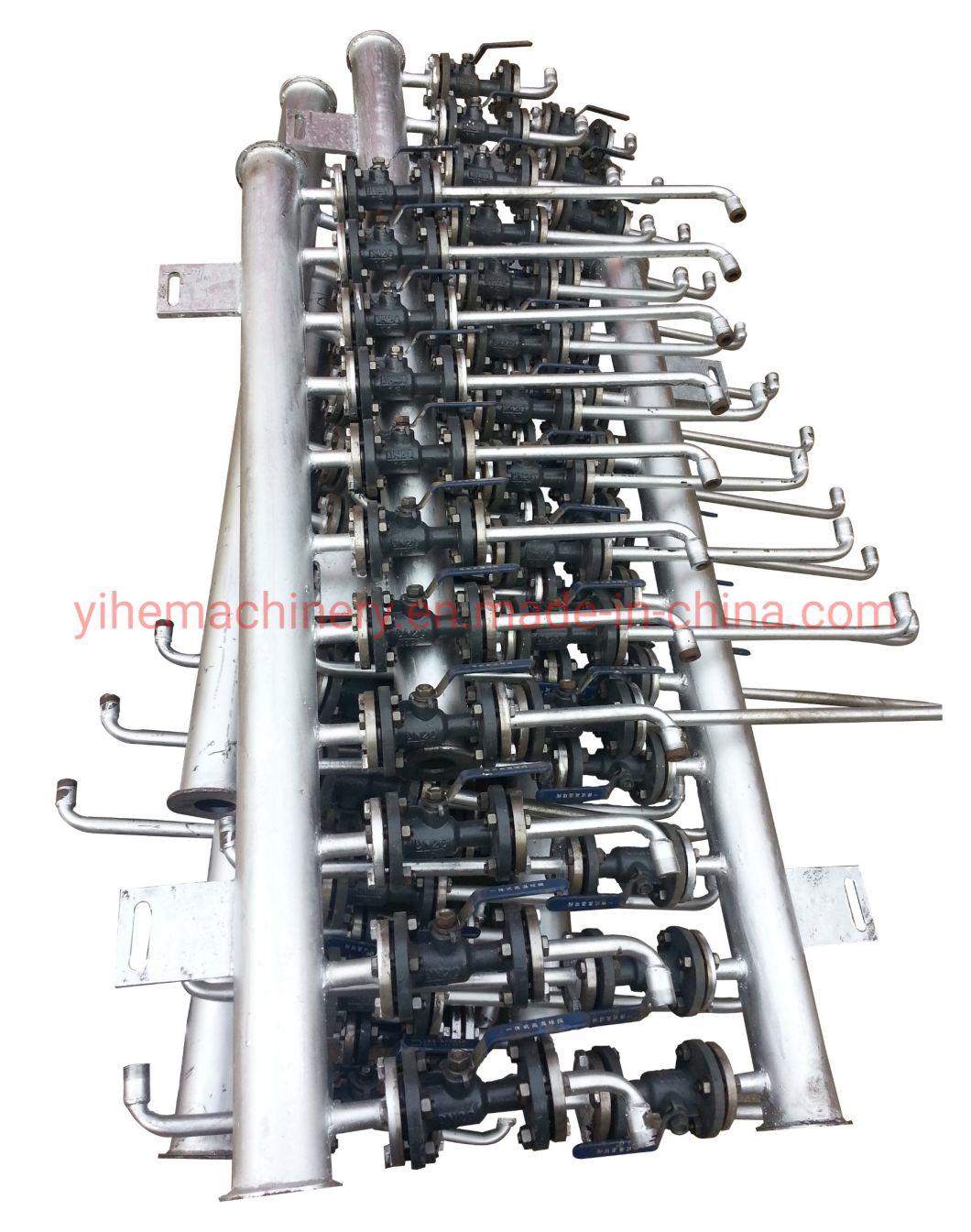

Hot platen inside pipeline:	Two inlets and two outlets
Quantity of cylinders:	2pcs
Diameter of main cylinders:	360mm
Working stroke of cylinders:	1050mm
Closing time of no-loading:	15seconds
Flow of low pressure pump:	250x2pcs
Power motor:	15kwx2sets
Flow of high pressure pump:	25x1pcs
Power of motor:	7.5kwx1set
Dimension:	3700x1370x4960mm

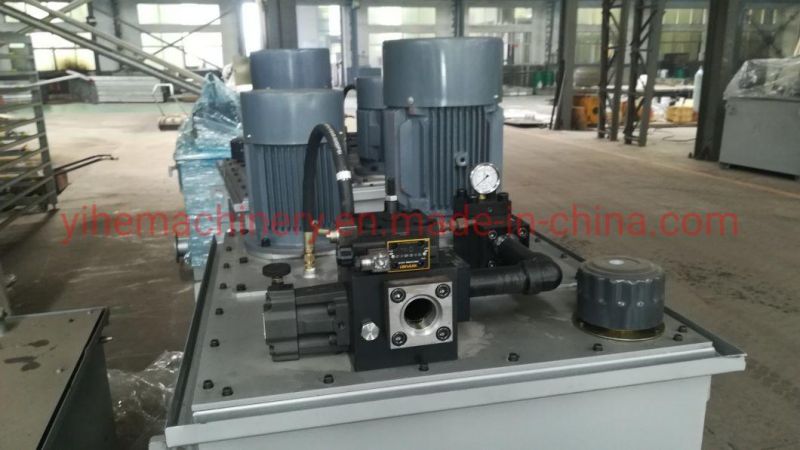

Controlling methods:	Automatic hydraulic stations
Hydraulic station brand:	WUXI brand
Thickness of up and down column:	900mm
Main steel plate thickness:	35mm
Total weight of this machine:	33-34T
Heating medium:	Thermal oil
Controller electrical parts:	Delta, Schneider,Siemens PLC,Siemens touching screen

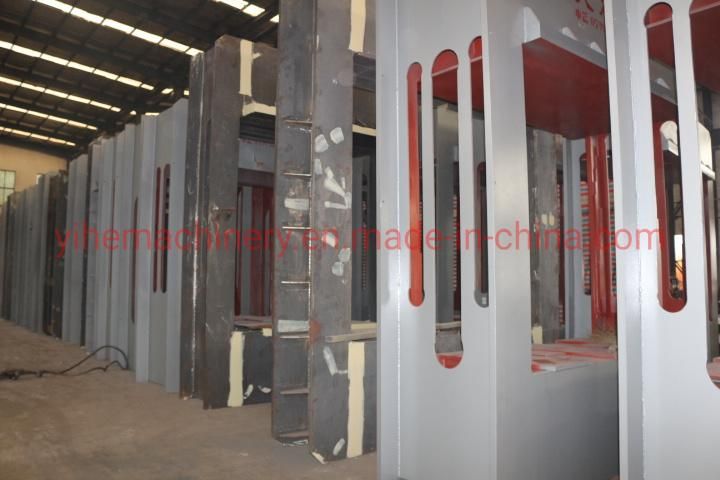

Images in Detail

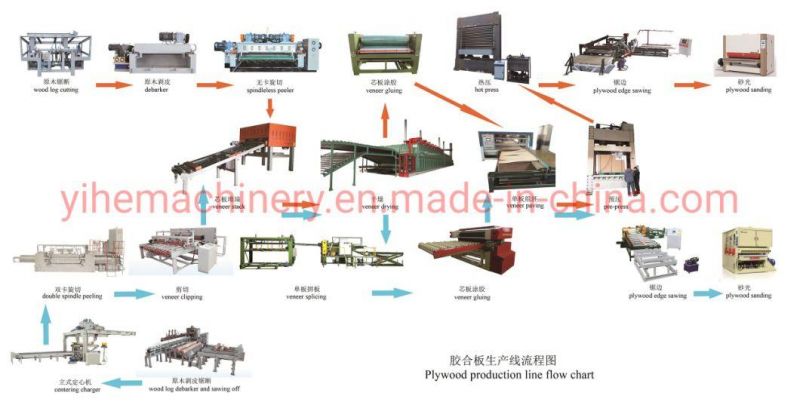

Plywood Production Line



Lead Delivery time:Normally 15days

Payment terms:30% in advance,70%before shipping from port

Warratry time:1 year

Service:Technician door to door service/online service 7/24

Contact Us

Company Information

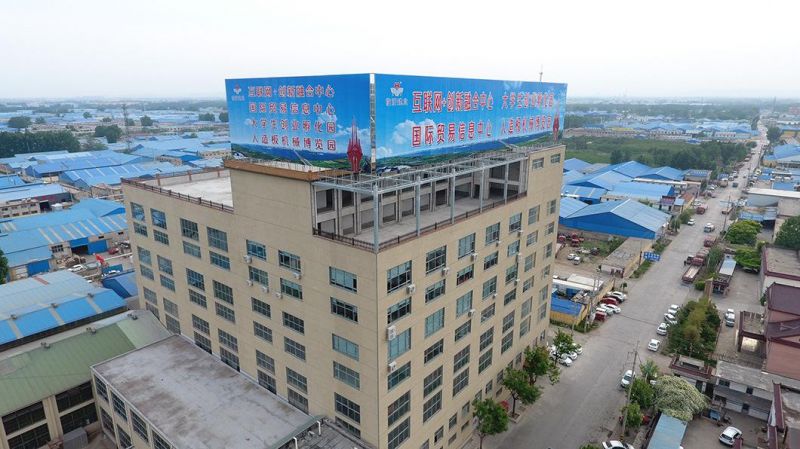

Linyi Jianye Shunda Machinery Manufacture Company Limited.(Linyi Jianye Shunda Imp.& Exp., Ltd.) is a professional machinery company in producing and selling plywood machine, particle board machine, MDF/HDF machine, flooring machine, lamination press, located in beautiful logistics city "LINYI", and also won license for direct import and export by the state government.
