Woodworking Machinery

Frame Saw Machines

Qingdao Samac International Trading Co., Ltd.
  • Type:Frame Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:Artificial
  • Precision:Normal Precision
  • Certification:ISO

Base Info

  • Model NO.:RSM-25-20
  • Customized:Customized
  • Condition:New
  • Color:Iron Grey
  • Transport Package:Soft Package
  • Specification:RSM-25-20
  • Trademark:SAMACH
  • Origin:China
  • Production Capacity:60sets,Month

Description

Basic Info.

Model NO. RSM-25-20 Customized Customized Condition New Color Iron Grey Transport Package Soft Package Specification RSM-25-20 Trademark SAMACH Origin China Production Capacity 60sets/Month

Product Description

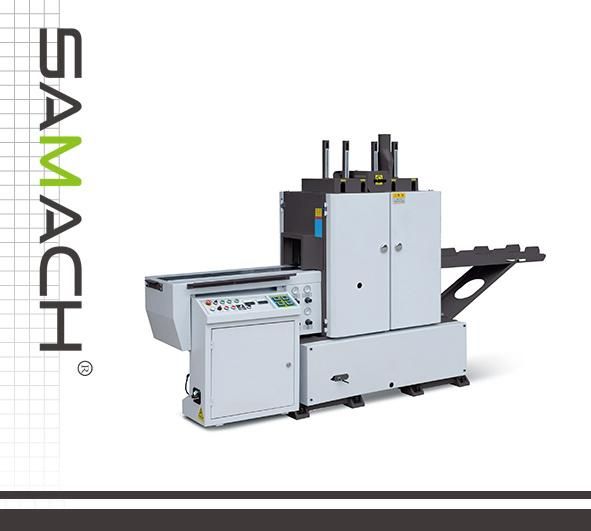

Square Wooden Frame Saw  RSM-25-20/RSM-30-20/RSM-30-25
Frame Saw Machines


The machine adopts advanced technology, and it is stable and reliable.
Max number of sawing motion is 480 times per minute.
Saw blade loss: 0.9-1.2-1.4
Suitable for: heavy bamboo sawing, flooring, shutter, guitar, wall panel etc.



Technical parameters
ParametersRSM-25-20RSM-30-20RSM-30-25
Voltage380V380V380V
Rated power of motor18.5KW22KW22KW
Feeding speed0.1-1.5M/MIN0.1-1.5M/MIN0.1-1.5M/MIN
Route of saw bow210MM210MM210MM
Frequency of running saw bow 480/MIN480/MIN480/MIN
Height of cutting(flexible adjustable)30-200M30-200MM30-200MM
Height of cutting(side backup)160-300MM160-300MM160-300MM
Height of cutting(Center backup)2X30-120MM2X30-150MM2X30-150MM
Numbers of feeding  railway2*120MM(Max.)2*150MM(Max.)2*150MM(Max.)
Length of block≥300MM300MM300MM
Height difference of block(center guide)± 0.5mm± 0.5mm± 0.5mm
Min.proceed thickness2MM2MM2MM
Precision of cutting height ,max.120mm±0.1MM±0.1MM±0.1MM
Precision of cutting height , max.120mm±0.2MM±0.2MM±0.2MM
Numbers of saw blades222222
Suction tubes3X100MM3X100MM3X100MM
Suction performance per connection1300M³/H1300M³/H1300M³/H
Compressed air≥6BA≥6BA≥6BA
Dimensions(Length X width X height)3600X980X2500MM3600X1030X2500MM3600X1030X2500MM
Weight 3000KG3200KG3200KG

Reasons to choose Samach:

1: good resources with No.1 quality in China
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls.
5: friend partner relationship.

Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
