High Quality Large Capacity Biomass Pellet Machinery with Ring Die

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Ring Die Pellet Machine
  • Voltage:220V
  • Automatic Grade:Automatic
  • Controlling Mode:CNC
  • Energy Saving:Energy Saving
  • Certification:CE, ISO, SGS

Base Info

  • Model NO.:WZLH508
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Provided
  • Capacity:1.5-1.8 T,H
  • Pellet Size:6,8,10 mm
  • Main Shaft:40cr
  • Gear Shaft:20crmnmo
  • Forced Feeding:Worm Gearing Reducer
  • Overload Mechanical Protection:Safety Pin
  • Lubrication System:Automatic Oil Filling System Is Available
  • Transport Package:Wood Pallet, Iron Pallet
  • Specification:1500KG
  • Trademark:FDSP
  • Origin:China, Jiangsu
  • HS Code:8479300000
  • Production Capacity:5 Sets Per Month

Description

Basic Info.

Model NO. WZLH508 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity 1.5-1.8 T/H Pellet Size 6/8/10 mm Main Shaft 40cr Gear Shaft 20crmnmo Forced Feeding Worm Gearing Reducer Overload Mechanical Protection Safety Pin Lubrication System Automatic Oil Filling System Is Available Transport Package Wood Pallet, Iron Pallet Specification 1500KG Trademark FDSP Origin China, Jiangsu HS Code 8479300000 Production Capacity 5 Sets Per Month

Product Description

High Quality Large Capacity Biomass Pellet Machinery With Ring Die
 WZLH series pellet mill can process all kinds of biomass pellets; (such as: sawdust, wood logs, wood chips, waste wood, branches, straw, wheat stalk, rice husk, cotton stalk, sunflower stalk, olive slag, grassy, bamboo, bagasse, paper, peanut shell, corn cob, soybean rod, weed granulation, etc.)

Features

1.The main drive adopts high-precision gear rotation, the efficiency is increased by about 15% compared with the belt drive type, and the ring die adopts the quick release hoop type;

2.The high-quality imported bearings and oil seals are used in the transmission part of the whole machine to ensure high efficiency, stability and low noise;

3.The international advanced level compensation type serpentine spring coupling has the characteristics of novel structure, compactness, safety and low failure;

4.Strengthen the working strength of the main working parts from the materials, heat treatment and other processes to achieve the granulation requirements of biomass particles;

5.There are a number of innovative designs on the ring die, which mainly improve the problems of ring mold anti-cracking, increased production output, and increased total output;

6.Add non-stop refueling system, add air-cooling system, high efficiency, low energy consumption, stable operation, stable and reliable granulation quality;

7.Configure overload protection device to improve equipment life;

8.The door cover is made of stainless steel for durability.

High Quality Large Capacity Biomass Pellet Machinery with Ring DieEquipment Configuration


Ring die materials:4Cr13 Stainless steel feeder:With broken arch function Door cover of granulating chamber:-6/SUS304 Forced feeding: worm gearing reducer Gearbox Casing:HT250 Wheel gear:42CrMo Gear shaft:20CrMnMo Main shaft:40Cr Hollow shaft:forge piece 45# Bearing:gear shaft, main shaft bearing is NSK, roller bearing is domestic high quality bearings Oil seal:Germany/Taiwan Overload mechanical protection:safety pin Serpentine spring coupling drive Lubrication system: Automatic oil filling system is available Morot: Siemens (China) motor or Wannan motor

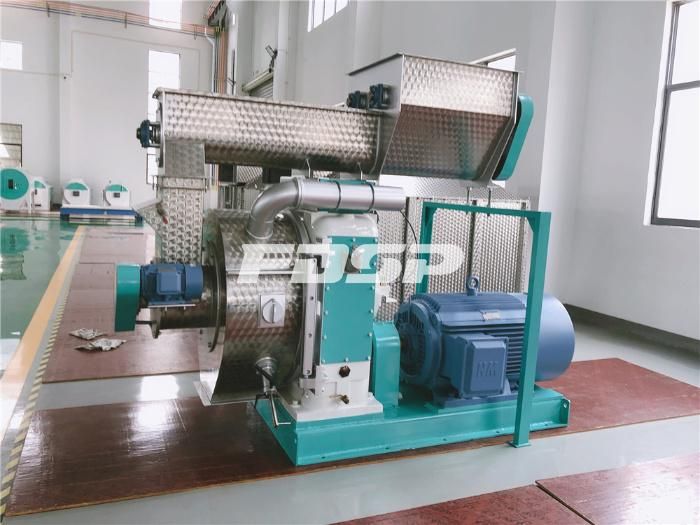

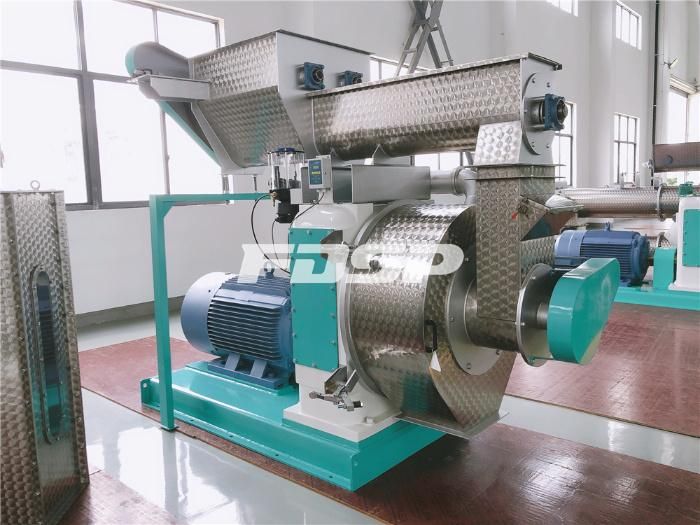

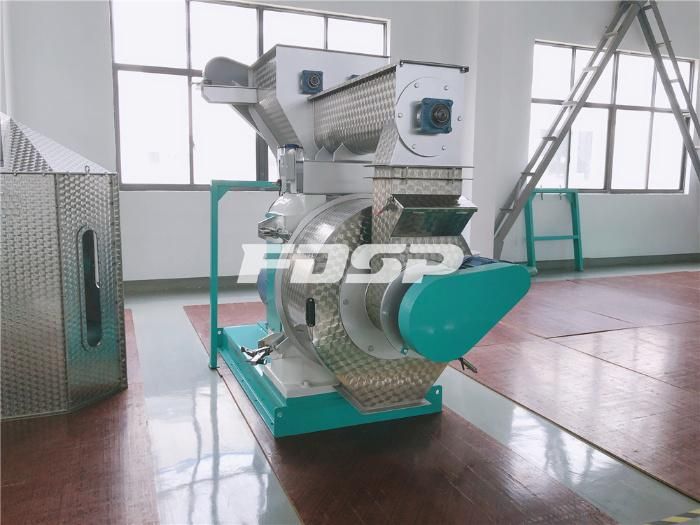

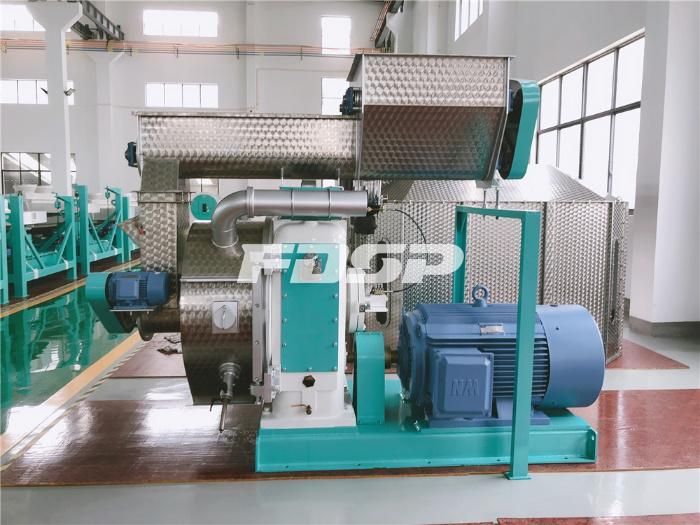

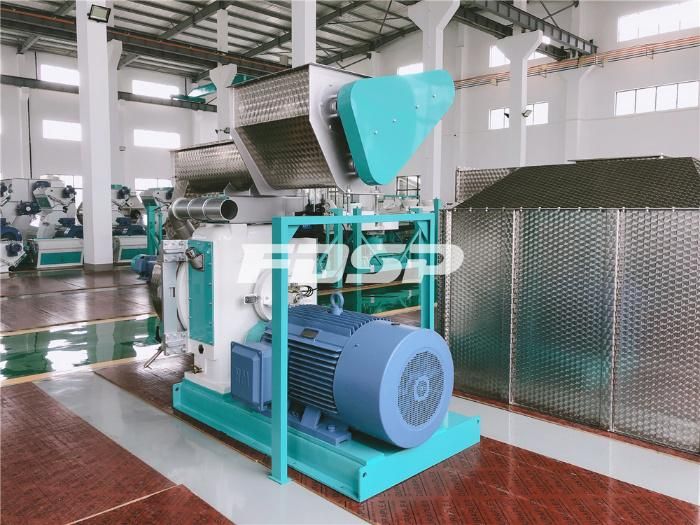

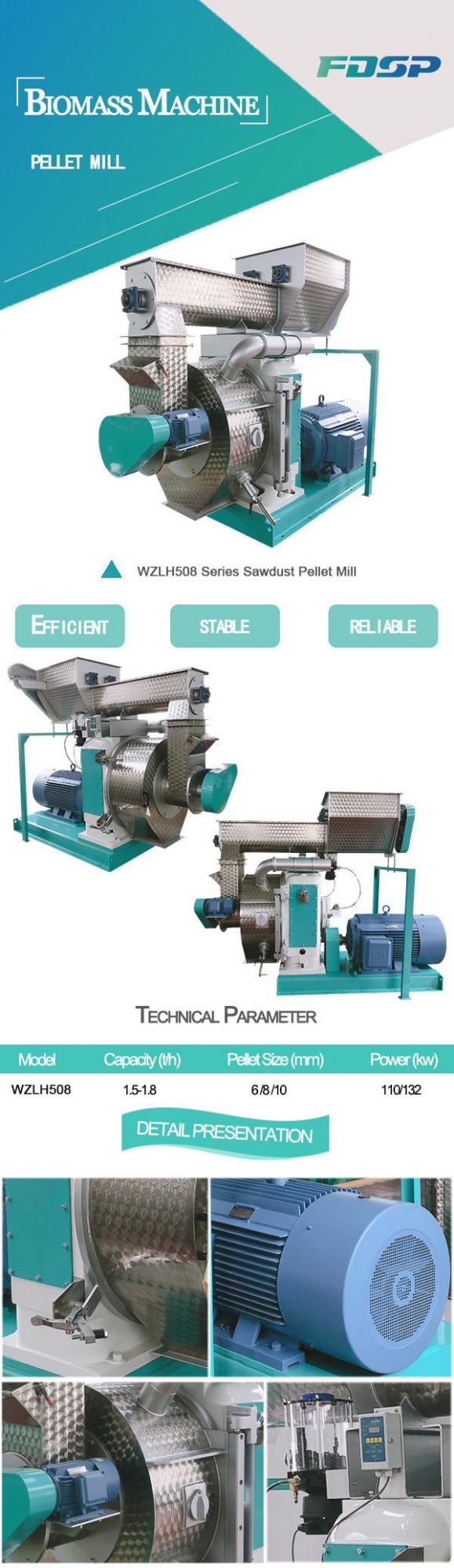

WZLH508 Wood pellet mill in the workshop show
High Quality Large Capacity Biomass Pellet Machinery with Ring Die
High Quality Large Capacity Biomass Pellet Machinery with Ring Die
High Quality Large Capacity Biomass Pellet Machinery with Ring Die
High Quality Large Capacity Biomass Pellet Machinery with Ring Die
High Quality Large Capacity Biomass Pellet Machinery with Ring Die
Biomass pellets show
High Quality Large Capacity Biomass Pellet Machinery with Ring Die

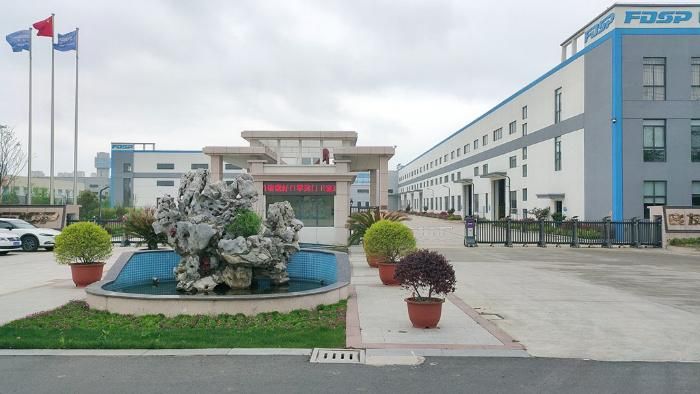

About us

As a Chinese listed company and a national high-tech enterprise, (FDSP) is a large-scale manufacturing system solution provider for feed machinery, biomass machinery, fertilizer machinery, storage machinery and complete sets of projects. Has served in Europe, Africa, Australia, South America, Southeast Asia, the Middle East and more than 30 countries and regions.The products have obtained ISO9001:2015 international quality system certification, EU national CE certification for biomass energy equipment and its complete production line, Russian GOST-R certification, and 6 years of SGS field certification. Reliable and reliable. We have a professional technical team to customize your own system solutions, providing one-stop services from pre-design, manufacturing to post-construction, maintenance and so on. Committed to providing "safe, reliable, energy-saving" stand-alone products to customers around the world, we are committed to creating high-quality, low-energy, strong and stable quality projects, and continuously create more and greater value for our customers.High Quality Large Capacity Biomass Pellet Machinery with Ring Die

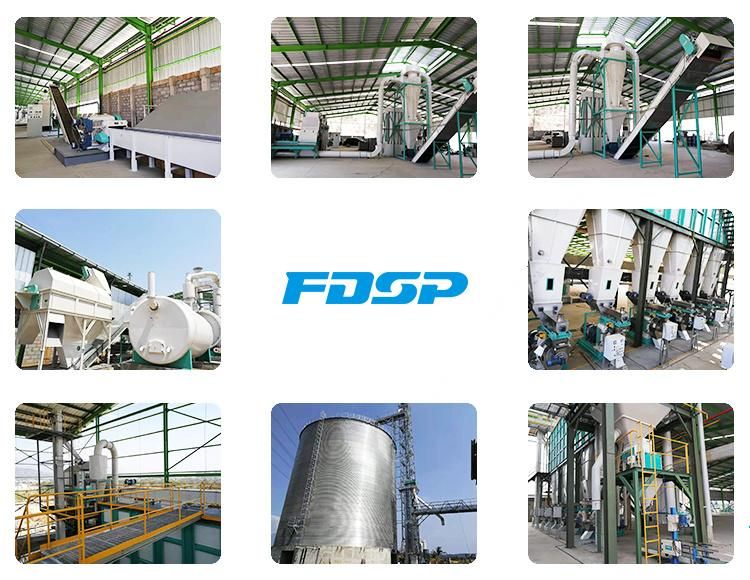

Successful Indonisia project-10tph wood pellet line engineering show

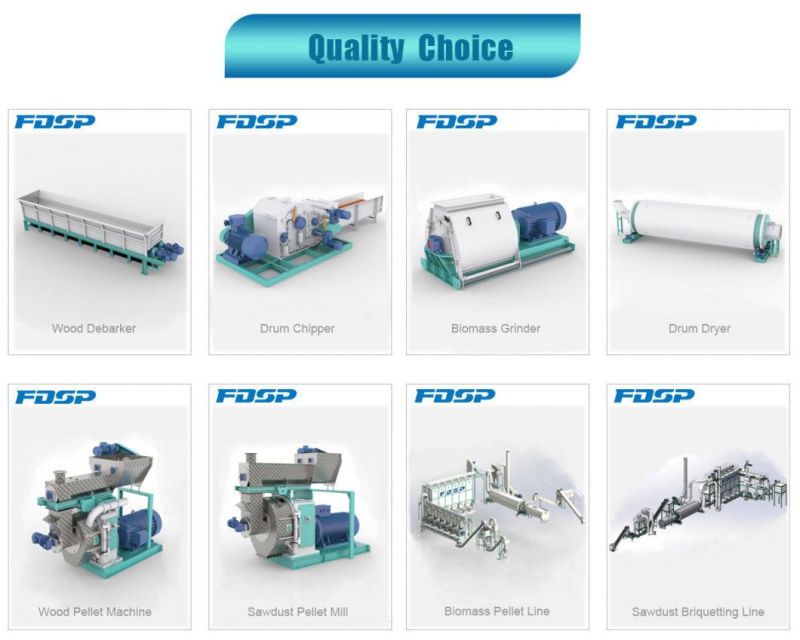

High Quality Large Capacity Biomass Pellet Machinery with Ring DieOther biomass machinery products
High Quality Large Capacity Biomass Pellet Machinery with Ring Die
Our certificates
High Quality Large Capacity Biomass Pellet Machinery with Ring Die
FAQ

1.Where you go to buy good quality wood pellet machine in China? Nowadays many overseas importers have confusion facing hundreds and thousands of Chinese wood pellet machine suppliers from B2B sources or Google. From Geographic point of view, best wood pellet machine suppliers concentrate in Southeast part of China, this Geography represents: 1.Highest level development of economy in China, namely, richest place in China. 2.Having highest standard of manufacturing, 3.Huge investment of R&D for sustainable development, 4.Most talent experts and profession workers, best tooling machines. So go to Southeast part of China to find qualified wood pellet machine supplier.

 2.How to choose qualified wood pellet machine supplier in Southeast part of China? Tips: 1.When suppliers' hardware reaches same level, the most comparable part is software incl. management, credit, culture, value. Test suppliers' software before business. 2.Seeing is believing, try to avoid dealing with trader who you are not familiar, in case of fraud. Visit supplier if you can. 3.Good company always hires best sales manager, good sales manager means fully communication, fully understanding, fully support, and always give good solutions at any times to solve client problems. High Quality Large Capacity Biomass Pellet Machinery with Ring Die
