MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：2 Years
  • Type：Double-sided Pressure Planer
  • Working Depth：100-200mm
  • Working Width：630mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical

Base Info

  • Model NO.：MB206H
  • Motor Power：30kw
  • Cutter Shaft：2
  • Spindle Speed：5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • After-sales Service：Video ,Email,Phone
  • Model：MB206h
  • Total Power：30kw
  • Processing Width：630mm
  • Processing Thickness：150mm
  • Using：Woodworking Planning
  • Product：Wood Floor, Door Frame, Timber
  • Voltage：380V Can Customer Made
  • Place of Origin：Qingdao, Shangdong Province
  • Transport Package：Stretch Film or Wooden Case
  • Specification：2800kg
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659200
  • Production Capacity：300sets,Month

Description

Basic Info.

Model NO. MB206H Motor Power 30kw Cutter Shaft 2 Spindle Speed 5000rpm Process Type Heavy Processing Certification CE, ISO After-sales Service Video ,Email,Phone Model MB206h Total Power 30kw Processing Width 630mm Processing Thickness 150mm Using Woodworking Planning Product Wood Floor, Door Frame, Timber Voltage 380V Can Customer Made Place of Origin Qingdao, Shangdong Province Transport Package Stretch Film or Wooden Case Specification 2800kg Trademark SOSN Origin China HS Code 84659200 Production Capacity 300sets/Month

Product Description

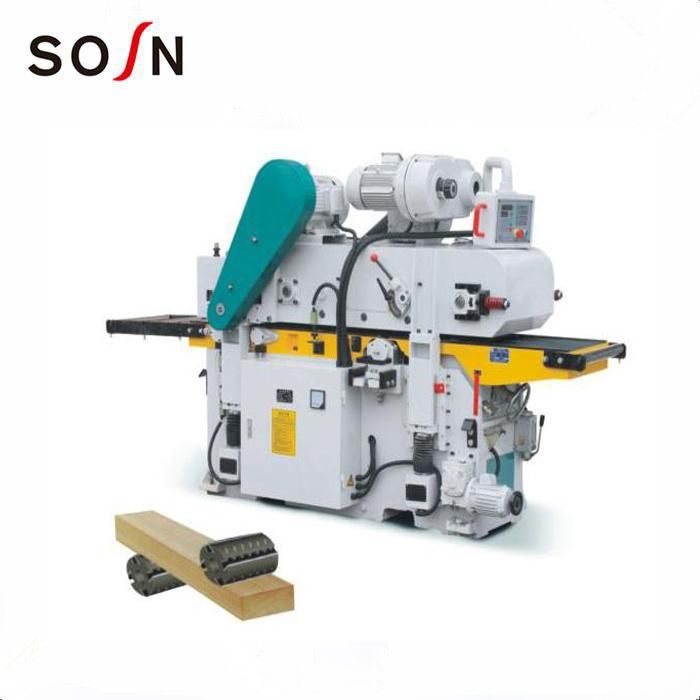

High quality planer machine MB206H double sided wood planer
MB206H High Quality Wood Planer Machine Double Side Moulder woodworking machinery
MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery
Main technical parameter:
Working width 630 mm
Working thickness150 mm
Min. working length 260 mm
Max. cutting depth (upper spindle )7 mm
Max. cutting depth (bottom spindle )5 mm
Tool cutting circle diameter 101 mm
Spindle speed 5000 r/min
Feed speed 6-26 m/min
Upper & bottom spindle motor 15/11kw
Feed motor 4 kw
Machine weight 2800kg

Product Application

• With good shock-absorbed quality&table casrting lathe and numera-controlled processing center thatcan process all materials once,it is good for knife spindle and feeding.
• The main spindle is processed specially and the other inported spindles with high precision can well support the whole machine.
• With elastic pedrail scratcher(optional infunctions);the pressed distance of the elastic scratchers can be chose according to the thickness and curvature of the wood so asto increase the processing precision and strengthen the feeding.
• The knife spindle,pressing roller and stable feeder on the lathe with maunual and automatic adjustable structure make sure the orientation mori speedily and exactly.

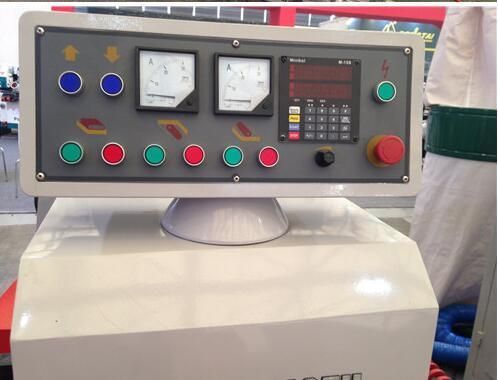

• Impported electrical components keep the whole machine works fast and safely.H-shaped series of products are equipped with imported munerical display unit,the processing thickness can be controlled directl on operation panel.the precision can be up to 0.01mm and the feed speed can be adjusted .
• The worktable is processed specially to become more wearable.

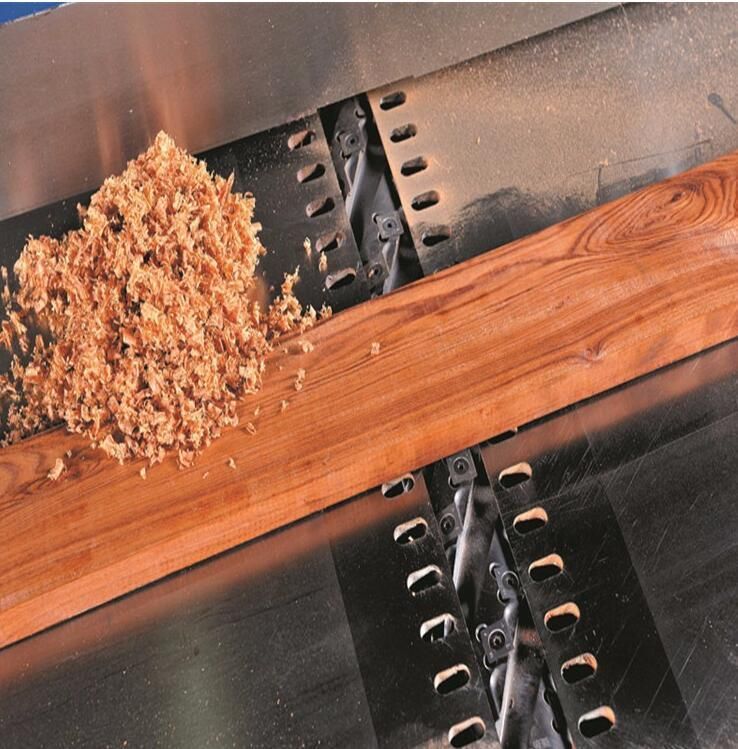

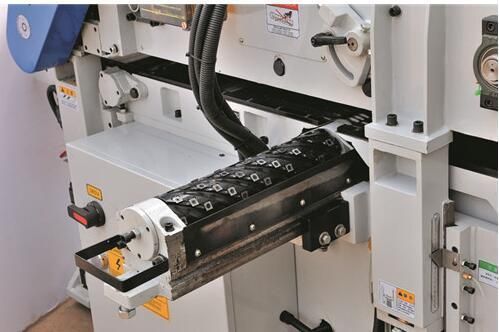

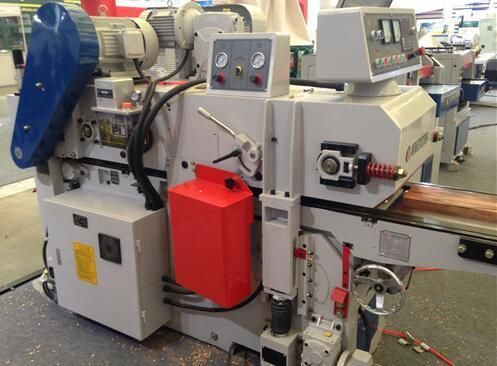

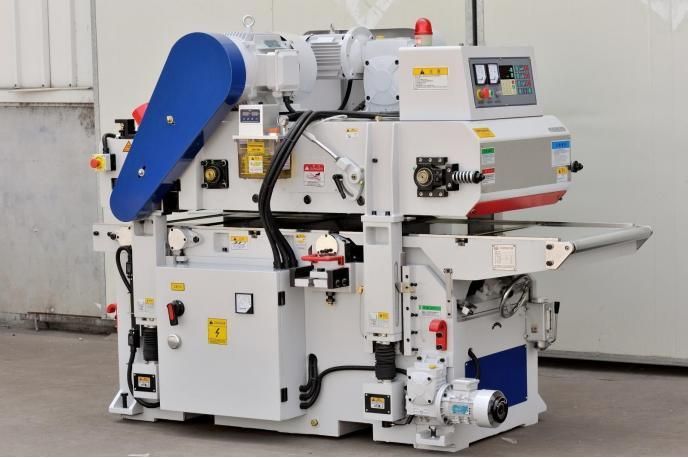

 detail pictures :
MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery
MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery
MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery
MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery

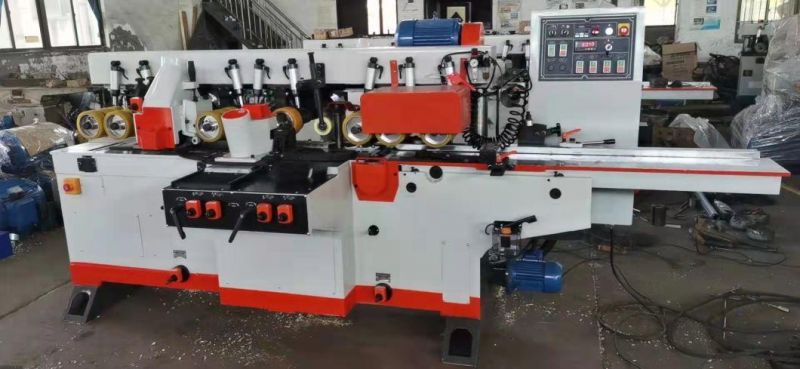

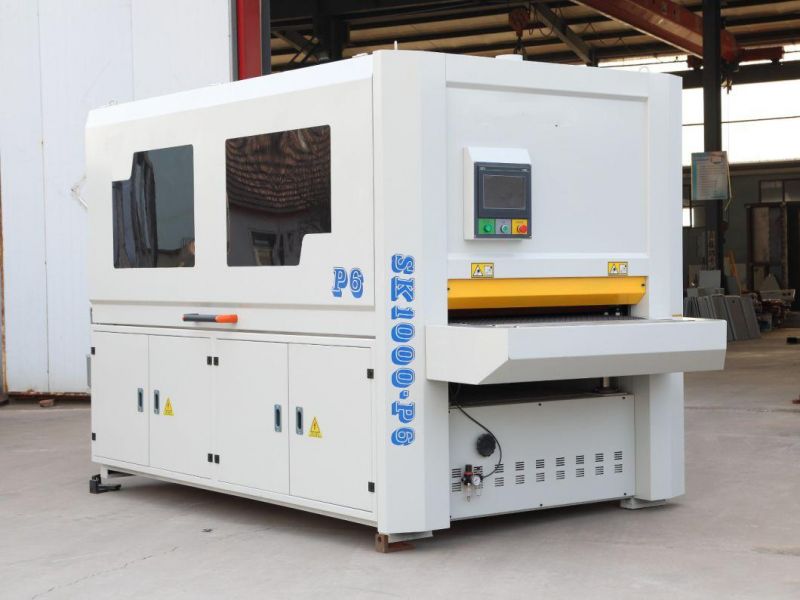

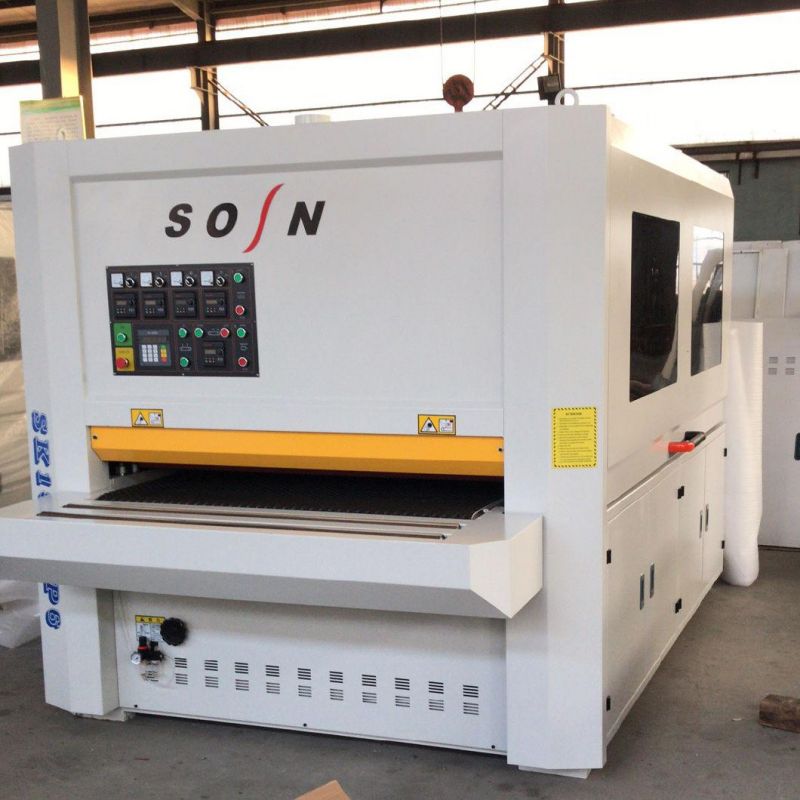

MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machineryother machines:
MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking MachineryMB206h High Quality Wood Planer Machine Double Side Moulder Woodworking MachineryMB206h High Quality Wood Planer Machine Double Side Moulder Woodworking MachineryMB206h High Quality Wood Planer Machine Double Side Moulder Woodworking MachineryMB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery

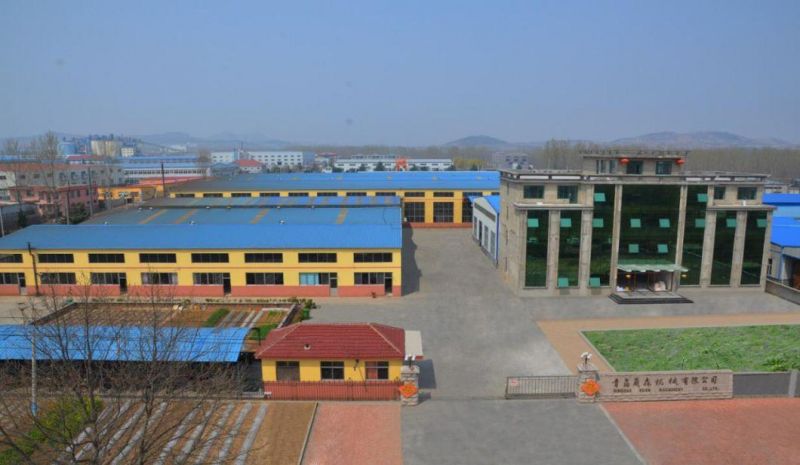

SOSN factory :
MB206h High Quality Wood Planer Machine Double Side Moulder Woodworking Machinery
SOSN history
SOSN Woodworking Machine is focus on design and manufacture of professional woodworking
machines over 30 years.
The Main products of SOSN Woodworking Machine are precision panel saw, edge banding machine,
drilling machine and CNC router. We have mare than 70 sales agents in China domestic market, and
 21 sales agents in 12 foreign countries of oversea market. Our customers and agents are from
Southeast Asia, The Middle East, America, Europe, and so on.
Professional design, Lean manufacturing, 24 hours on line service ensure we supply high quality
product to customer on time.
In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help of our Iran
 technical Engineers, we design and manufacture new electronic panel saw and edge banding
machine.
SOSN Woodworking Machine are always researching and manufacturing professional and
economical woodworking machines to our customers.

Note1. This price is based on voltage 380v,50hz,3ph2.Warranty : 2 YEARS.3.Payment terms: 30% deposit by TT , 70% before ship by TT.4.Package : standard wooden case, packaging charge is included in the offer above.5.Delivery time: 15 work days after recive deposit.6.MOQ : 1 set.
Should you have any need of the machine ,please feel free to contact with me
