• Model NO.：WZLH508
• Warranty：2 Years
• Customized：Customized
• Condition：New
• Color：Green
• After-sales Service：Provided
• Dimension(L*W*H)：3550*1475*2855mm
• Ring Die Diameter：508mm
• Screw Feeder Power：3kw
• Pellet Size：6mm, 8mm, 10mm
• Transport Package：Iron Pallet
• Specification：1500KG
• Trademark：FDSP
• Origin：Jiangsu Liyang
• HS Code：8436100000
• Production Capacity：1.5-2.0tph

Basic Info.

Model NO. WZLH508 Warranty 2 Years Customized Customized Condition New Color Green After-sales Service Provided Dimension(L*W*H) 3550*1475*2855mm Ring Die Diameter 508mm Screw Feeder Power 3kw Pellet Size 6mm, 8mm, 10mm Transport Package Iron Pallet Specification 1500KG Trademark FDSP Origin Jiangsu Liyang HS Code 8436100000 Production Capacity 1.5-2.0tph

Product Description

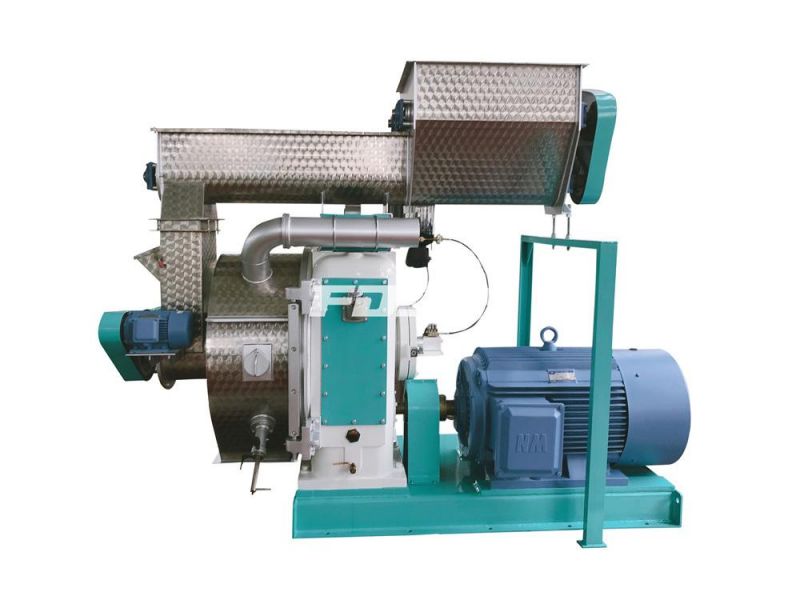

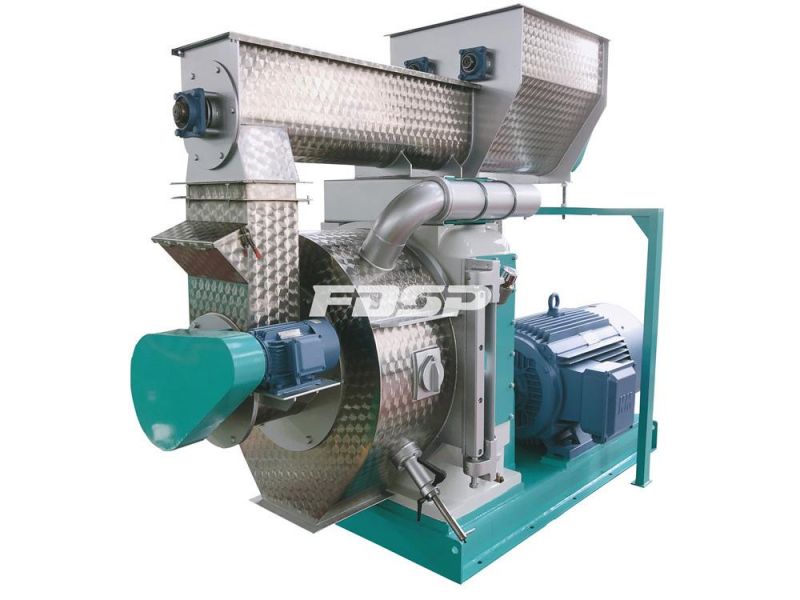

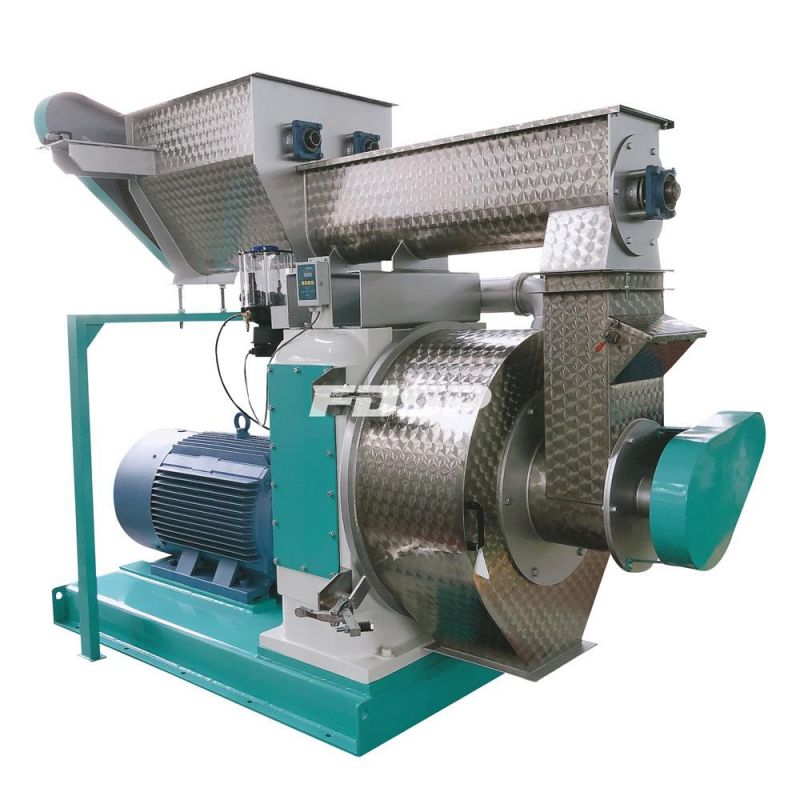

Hot Sale CE ISO SGS Approved Ring Die Wood Pellet Mill
Feature

1. It is widely used for pellet of light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;

2. The feeder's especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;

3. Feeder, conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system, which can protect machine well during production;

5. Feeder is with a variable speed controlled to meet different outputs requirements;

6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more than the same type machine with belt-convey;

7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability, credibility;

8. The alloy steel die is with international advanced equipment and technics, and has long service life, slippery pellet and high quality.

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

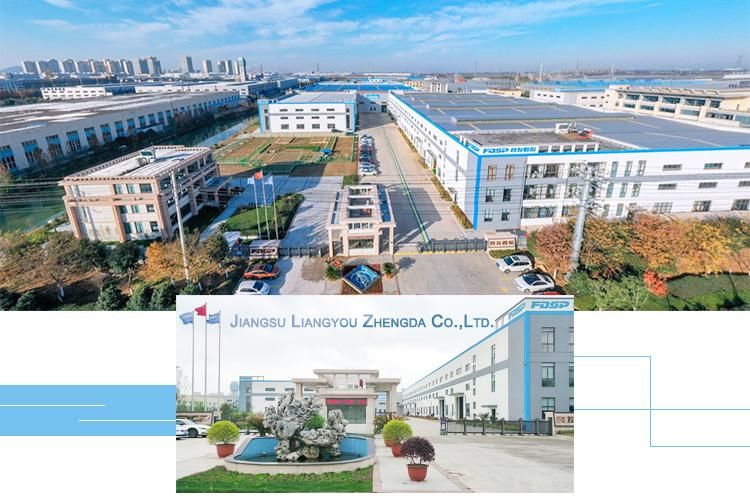

About FDSP

As a Chinese listed company and a national high-tech enterprise, (FDSP) is a large-scale manufacturing system solution provider for feed machinery, biomass machinery, fertilizer machinery, storage machinery and complete sets of projects. Has served in Europe, Africa, Australia, South America, Southeast Asia, the Middle East and more than 30 countries and regions.
The products have obtained ISO9001:2015 international quality system certification, EU national CE certification for biomass energy equipment and its complete production line, Russian GOST-R certification, and 6 years of SGS field certification. Reliable and reliable.
We have a professional technical team to customize your own system solutions, providing one-stop services from pre-design, manufacturing to post-construction, maintenance and so on. Committed to providing "safe, reliable, energy-saving" stand-alone products to customers around the world, we are committed to creating high-quality, low-energy, strong and stable quality projects, and continuously create more and greater value for our customers.
